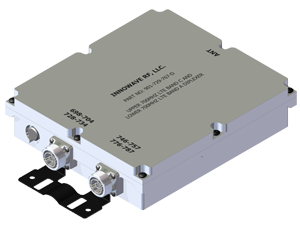

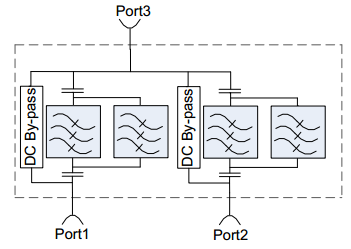

Upper 700-LTE Band-C and Lower 700-LTE Band-A Diplexer / Combiner

PART #:

901-729-767
FEATURES

  • Splits or combines the Upper 700MHz LTE Band-C (746MHz-757MHz & 776MHz-787MHz) and Lower 700MHz LTE Band-A (698MHz-704MHz & 728MHz-734MHz)
  • Rejects In-Band Public Safety frequencies (763MHz-775MHz)
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Low-PIM with High Power Handling
  • RoHS Complaint
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery

Electrical Specification

Frequency BandsUpper 700MHz LTE Band C 746MHz-757MHz & 776MHz-787MHz Lower 700MHz LTE Band A 698MHz-704MHz & 728MHz-734MHz
Passband Insertion Loss0.20 dB0.20 dB
Isolation≥70dB Between Ports ≥30dB Rejection @ 766.5MHz ≥70dB Between Ports ≥30dB Rejection @ 716MHz
Return Loss21 dB21 dB
Impedance50 Ohms50 Ohms
Input Power400 Watts (Avg); 2500 Watts (Peak)400 Watts (Avg); 2500 Watts (Peak)
DC Pass Current4000 mA (Typ)4000 mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)8/20S 10kA Pulse (IEC 801-5)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)-161 dBc (2 Tones +43 dBm)

Mechanical Specification

Connectors: 7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing Finish: Aluminum Body
Mounting Method:Mounting Panel
Temperature Range:-35°C to 75°C
Relative Humidity:5% - 95%
Environment:IP67

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
