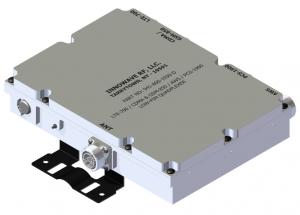

LTE-700 / CDMA & GSM-850 / PCS-1900 / AWS Band Low-PIM

PART #:

941-800-1930-D
FEATURES

  • Splits or combines the 700MHz LTE Band (698MHz-787MHz), CDMA/850MHz GSM Band (806MHz-894MHz), 1900MHz PCS (1850MHz-2000MHz), AWS Band (1710MHz-1755MHz & 2110MHz-2155MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Low-PIM with High Power Handling
  • ROHS Complaint
  • Ease of Mounting with mounting holes
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands700 MHz LTE850 MHz GSM/CDMA1900 MHz PCSAWS Band
698MHz - 787MHz806MHz - 894MHz1850MHz - 2000MHz1710MHz - 1755MHz 2110MHz - 2155MHz
Insertion Loss≤ 0.50 dB (Typ)≤ 0.50 dB (Typ)≤ 0.50 dB (Typ)≤ 0.50 dB (Typ)
Pass Band Ripple≤ 0.15 dB (Typ)≤ 0.15 dB (Typ)≤ 0.15 dB (Typ)≤ 0.15 dB (Typ)
Isolation≥ 60 dB≥ 60 dB≥ 60 dB≥ 60 dB
Return Loss≤ -20 dB (Typ)≤ -20 dB (Typ)≤ -20 dB (Typ)≤ -20 dB (Typ)
Impedance50 Ohms50 Ohms50 Ohms50 Ohms
Input Power200 Watts (Avg)200 Watts (Avg)200 Watts (Avg)200 Watts (Avg)
Intermodulation (PIM-3rd)*-157dBc (Typ) (2 Tones +43 dBm)-157dBc (Typ) (2 Tones +43 dBm)-157dBc (Typ) (2 Tones +43 dBm)-157dBc (Typ) (2 Tones +43 dBm)
MTBF Hours≥ 500,000≥ 500,000≥ 500,000≥ 500,000

Mechanical Specification

Connectors:Type-N (N) / DIN (D) / Mini-DIN (MD) / 4.3-10 (D43)
Housing Finish: Aluminum Body
Mounting Method:Mounting Holes
Temperature Range:-20°C to 60°C
Humidity: 5% – 95%
Environment: IP67

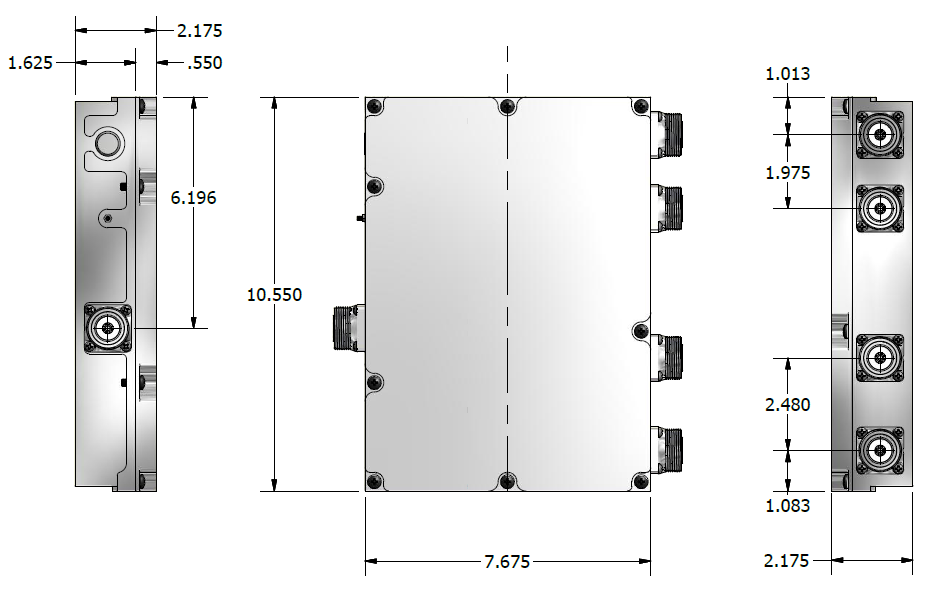

Dimensions for 941-800-1930-D

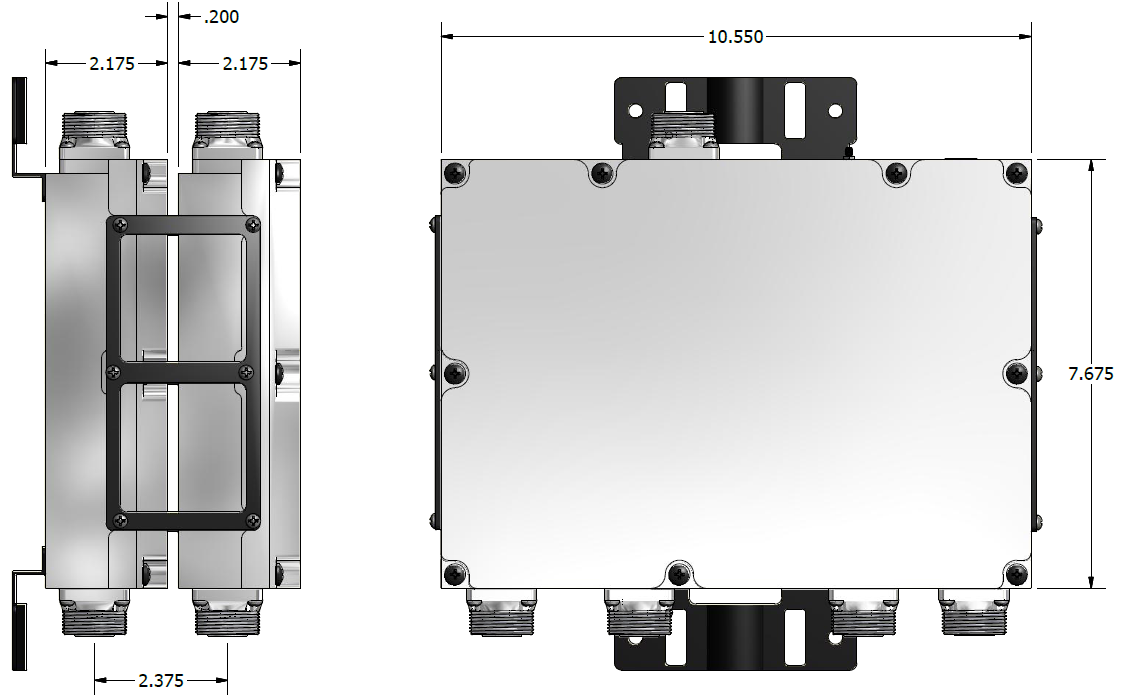

Dimension for 942-800-1930-D

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
