932C-742-852

700 (B12, B29) / 700-FN (B14) / 850 Band Triplexer/Combiner

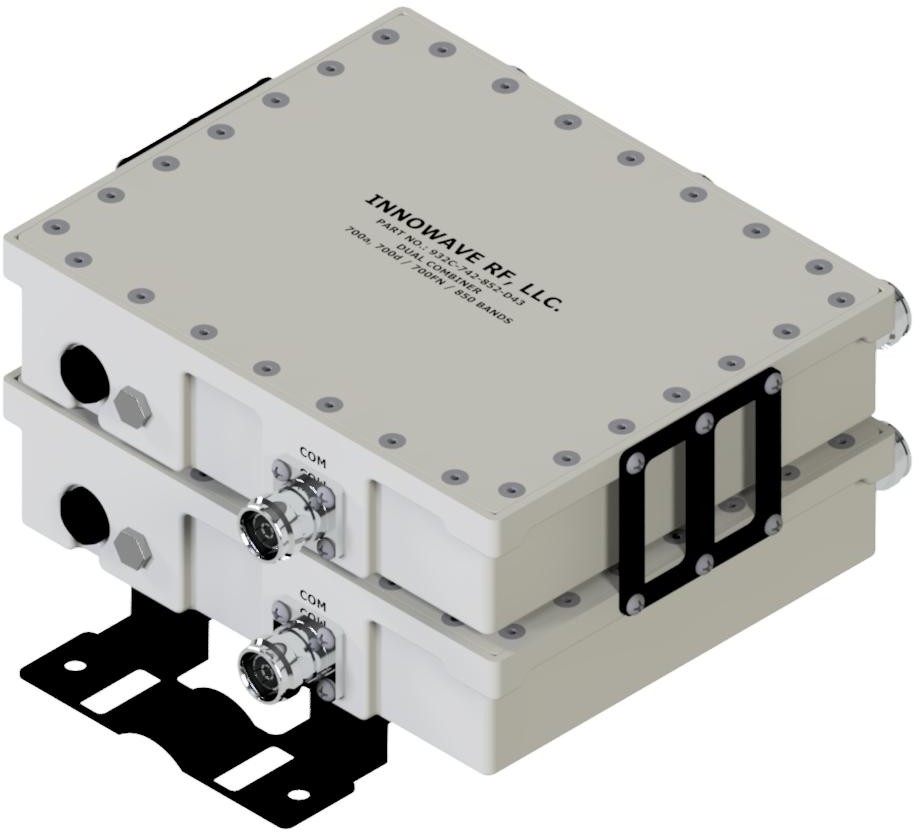

-161dBc PIM, IP67, Stacked Model

FEATURES

  • Splits or combines the 700 Band (B12, B29) / 700-FirstNet Band (B14) and 850 Band
  • Available in Single Model (931C Series)
  • Minimum 40dB Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 or NEX10 Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Compliant
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands700A (B12) & 700D (B29)700-FN (B14)850 MHz
698MHz - 746MHz758MHz – 768MHz814MHz - 896MHz
788MHz – 798MHz
Passband Insertion Loss0.25 dB
Isolation≥ 40 dB
Return Loss21 dB
Impedance50 Ohms
Input Power / Port150 Watts (Avg)
DC Pass Current4000 mA (Typ)
(DC Block Available on Request)
Intermodulation (PIM - 3rd)-161dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10kA Pulse (IEC801-5)
MTBF Hours≥ 500,000

MECHANICAL SPECIFICATIONS

Connectors4.3-10 (D43) / NEX10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
Temperature Range-30°C to 75°C
Humidity5% – 95%
Weight9.00 lbs
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
