931-1600-2390
932-1600-2390
932-1600-2390

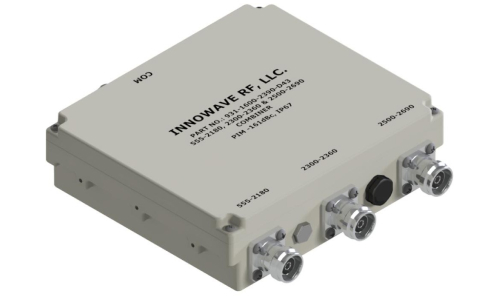

600 (B71), 700LTE, CDMA, PCS, AWS-1&3 / WCS / 2600LTE Triplexer / Combiner
600, 700, 850, PCS, AWS-1&3 555MHz - 2180MHz
FEATURES
- Splits or combines the 600 (Band71), 700MHz LTE, CDMA, PCS, AWS-1 & AWS-3 Bands (555MHz2180MHz) and WCS Band (2300MHz-2360MHz), BRS, 2600MHz LTE Bands (2500MHz-2690MHz)
- Excellent Isolation between the bands
- Very low Insertion Loss with superior out of band rejections
- Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
- Low-PIM with High Power Handling
- Ease of Mounting with mounting holes and brackets
- RoHS Complaint
- Weatherproof for Outdoor use
- In Stock and Available Immediately
Electrical Specification
| Frequency Bands | 600, 700, 850, PCS, AWS-1&3 555MHz - 2180MHz | WCS 2300MHz - 2360MHz | BRS/2600MHz LTE 2500MHz - 2690MHz |
| Passband Insertion Loss | 0.25 dB (Typ) | ||
| Isolation | ≥ 65 dB (Typ) | ||
| Return Loss | 21 dB (Typ) | ||
| Impedance | 50 Ohms | ||
| Input Power | 400 Watts (Avg); 3000 Watts (Peak) | ||
| Intermodulation (PIM - 3 rd) | 161dBc (Min) (2 Tones +43 dBm) | ||
| DC Pass Current | 3000mA (Typ); 5000mA (Max) | ||
| Lightning Protection | 8/20S 10kA Pulse (IEC801-5) | ||
| MTBF Hours | ≥ 500,000 | ||
Mechanical Specification
| Connectors: | Type-N (N) / DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) |
| Housing Finish: | Aluminum Body |
| Mounting Method: | Mounting Holes |
| Weight: | 3.00 lbs |
| Temperature Range: | -30°C to 60°C |
| Humidity: | 5% – 95% |
| Environment: | IP67 |

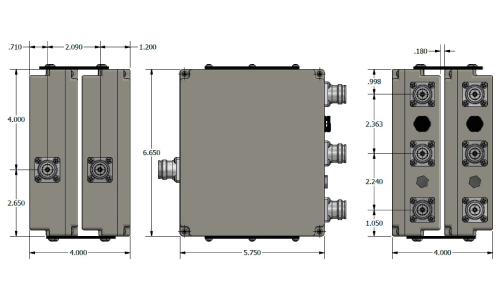

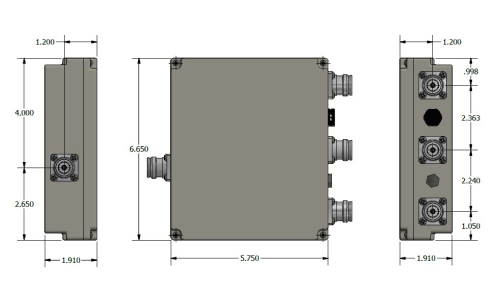

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
