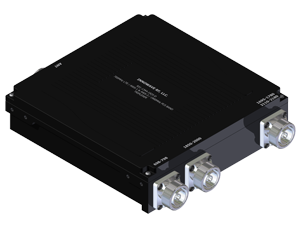

700MHz LTE / AWS-1, AWS-3 / 1900MHz PCS Triplexer / Combiner

PART #:

931-1344-1925
FEATURES

  • Splits or combines the 700MHz LTE Band (698MHz-798MHz), AWS-1, AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2180MHz) and 1900MHz PCS Band (1850MHz-2000MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Low-PIM with High Power Handling
  • Ease of Mounting with mounting holes and brackets
  • RoHS Complaint
  • Weatherproof for Outdoor use
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands700 MHz LTEAWS-1 & AWS-3 Bands1900 MHz PCS
698MHz - 798MHz1695MHz - 1780MHz 2110MHz – 2180MHz 1850MHz - 2000MHz
Passband Insertion Loss0.25 dB0.25 dB0.25 dB
Isolation≥ 65 dB≥ 65 dB≥ 65 dB
Return Loss21 dB21 dB21 dB
Impedance50 Ohms50 Ohms50 Ohms
Input Power400 Watts (Avg); 3000 Watts (Peak)400 Watts (Avg); 3000 Watts (Peak)400 Watts (Avg); 3000 Watts (Peak)
Intermodulation (PIM - 3rd)-161dBc (2 Tones +43 dBm)-161dBc (2 Tones +43 dBm)-161dBc (2 Tones +43 dBm)
DC Pass Current3000mA (Typ)3000mA (Typ)3000mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC801-5)8/20S 10kA Pulse (IEC801-5)8/20S 10kA Pulse (IEC801-5)
MTBF Hours≥ 500,000≥ 500,000≥ 500,000

Mechanical Specification

Connectors:Type-N (N) / DIN (D) / Mini-DIN (MD) / 4.3-10 (D43)
Housing Finish: Aluminum Body
Mounting Method: Mounting Holes
Temperature Range: -30°C to 60°C
Humidity: 5% – 95%
Environment:IP67

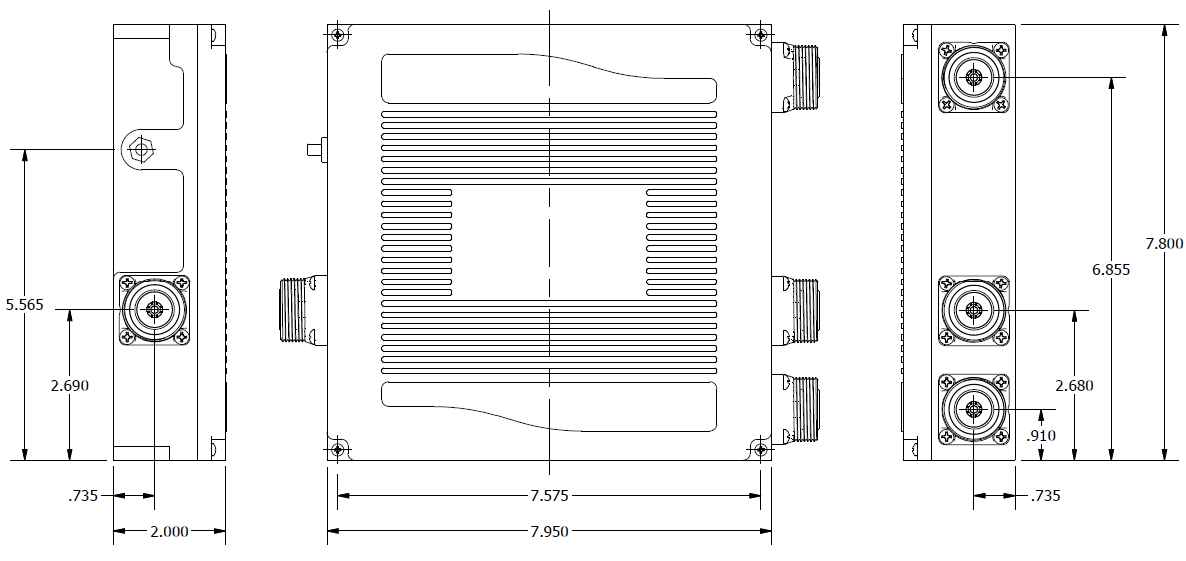

Dimensions for 931-1344-1925-D

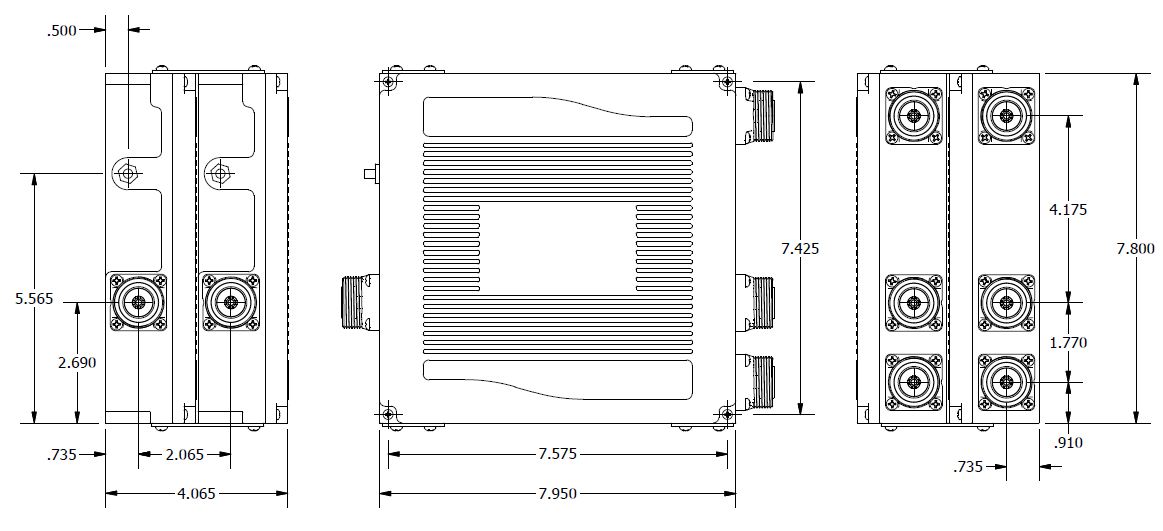

Dimensions for 932-1344-1925-D

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
