PART #:
301L-200200W Low-PIM Terminations / Loads
-164dBc PIM, 600-2700 MHz, IP67

DESCRIPTION
301L-200 Series of Low-PIM RF Terminations operates from 600MHz to 2700MHz and is rated at 200 Watts of average power. These terminations are mechanically well constructed to allow maximum heat dissipation to sustain long life by preventing temperature hot spots. These are precision machined, robust and can be used over a wide range of temperature and environmental conditions. They are perfect for both Indoor and Outdoor applications.
FEATURES
- Low-PIM performance, -164dBc (min)
- Superior Mechanical Construction
- 200 Watts Power Handling
- Low VSWR from 600MHz to 2700MHz
- RoHS Complaint
- In stock and available immediately
- Available in different connector configurations

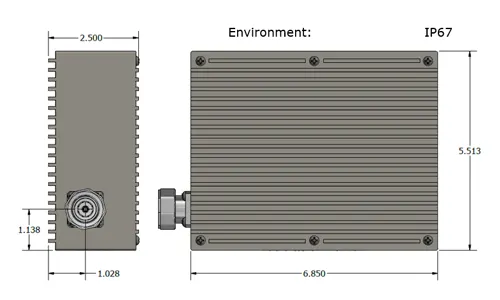

BLOCK DIAGRAM FOR 301L-200 SERIES

*** ORDERING INFO:
Part #: 301L-200-*
(* - Connector Option)
ELECTRICAL & MECHANICAL SPECIFICATIONS:
Frequency Range: | 600MHz – 2700MHz |
VSWR | ≤ 1.22 (Typ) |
Input power: | 200 Watts (Avg); 1000W (Peak) |
Impedance: | 50 Ω |
Intermodulation (PIM - 3rd): | -164 dBc (Min) (2Tones +46dBm @ 60sec) |
Connectors: | 7/16 DIN (D) / Mini-DIN (MD) 4.3-10 (D43) / Nex10 (x10) |
Housing Finish: | Aluminum Body |
Mounting Method: | Mounting Panel |
Weight: | 3.40 lbs |
Temperature Range: | -35°C to 75°C |
Relative Humidity: | 5% - 95% |
Environment: | IP67 |
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
