241-600-6000

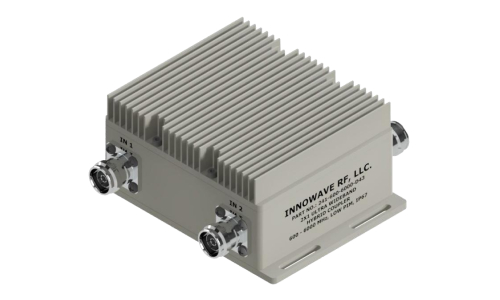

Low-PIM 2×1 Ultra Wideband Hybrid Coupler (Internally Terminated 2nd Output)

600-6000 MHz, -161dBc, IP67

241-600-6000 is a 3 port Hybrid Coupler that can be used to combine any 2 signals in the 600MHz – 6000MHz range, including the LTE-LAA, CBRS and C-Band. The 4th port internally terminated to a Low PIM 50Ω load. The combined or split signals will appear at the output port. These can be used over a wide range of temperature & environmental conditions. This Hybrid Coupler is rated for 100W applications. Higher wattage models are available on request.

FEATURES

  • Combines or Split 2 signals in the 600MHz – 6000MHz
  • Designed to include 600-B71, LTE-LAA, CBRS and C-Band
  • Internally terminated to a Low PIM 50Ω load
  • Best-in-class Isolation between the 2 signals
  • Available in DIN, Mini-DIN, 3-10 or Type-N Connectors
  • Very low Insertion Loss
  • RoHS Complaint
  • Ease of Mounting with mounting holes / brackets
  • Weatherproof for Outdoor use
  • In Stock and Available Immediately

Electrical Specification

Frequency Range600MHz – 6000MHz
Coupling Loss3.10 dB ± 1.0dB
Isolation20.00 dB
Impedance50 Ohms
Return Loss18 dB
VSWR1.30
Power100 Watts (Avg)
Intermodulation (PIM - 3rd)-161 dBc
(2Tones +43dBm)

Mechanical Specification

ConnectorsType-N (N) / DIN (D) /
Mini-DIN (MD) / 4.3-10 (D43)
Housing FinishAluminum Body
Mounting MethodMounting Hole
Temperature Range-35°C to 85°C
Weight4.00 lbs
Humidity100%
EnvironmentIP67

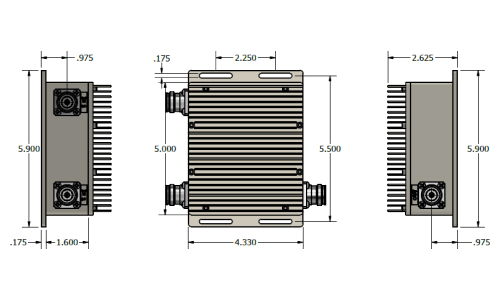

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
