R249H-600-6000-D43

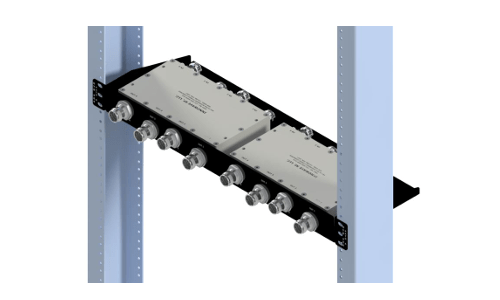

2x 6dB Hybrid Combiner on 19” Rack Tray (4x4 Hybrids)

2x 6dB Hybrid Combiner (4×4 Hybrid) Modules for
H-Frame / Rack-Mounted DRAN system
2×2 MIMO solution with 2 combiners on a tray
100W per Port of power handling
Minimum 25dB Isolation
1RU Rack High
-163dBc PIM with Low Insertion Loss
Interchangeable Modules for easy upgrades and/or
Troubleshooting

Freq Bands/Part Numbers	600(B71)700-Cell	700-FN(B14)	850	AWS-1 AWS-3	WCS	BRS	DoD CBRS C-Band
R232H-600-6000-D43	Covers all Bands (600MHz – 6000MHz)
R247H-600-6000-D43	4x4 Hybrid Combiner with 3x Output Ports Internally Terminated Covers all Bands (600MHz – 6000MHz)
R248H-600-6000-D43	4x4 Hybrid Combiner with 2x Output Ports Internally Terminated Covers all Bands (600MHz – 6000MHz)
R249H-600-6000-D43	4x4 Hybrid Combiner with 1x Output Ports Internally Terminated Covers all Bands (600MHz – 6000MHz)
Coupling Loss	6.20 dB ± 0.80dB @600-2700 MHz 6.20 dB ± 0.80dB @ 2700-4200 MHz 6.35 dB ± 0.80dB @ 4200-6000 MHz
Isolation	25dB @ 600-3800 MHz 24dB @ 3800-6000 MHz
VSWR	1.25:1
Impedance	50 Ohms
Input Power / Port	100 Watts (Avg)
Intermodulation (PIM - 3rd)	-163dBc (2 Tones +43 dBm)
Connectors	4.3-10 or Nex10
Temperature	-30°C to +70°C
Rack Height	1RU
Rack Tray Dimensions	19.00”(W) x 1.75”(H) x 9.50”(D)
