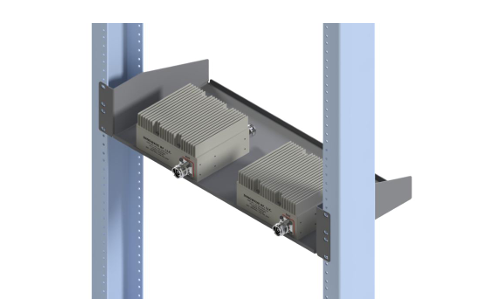

2x 3dB Hybrid Combiner on 19” Rack Tray (2x1 Hybrid)

R242H-600-6000-D43

2RU High, -163dBc PIM

FEATURES

  • 2x 3dB Hybrid Combiner (2×1 Hybrid) Modules for
    H-Frame / Rack-Mounted DRAN system
  • One of the outputs of the 2×2 Hybrid is Internally
  • Terminated with a 50Ω Load
  • 2×2 MIMO solution with 2 Hybrids on a tray
  • 100W per Port of power handling
  • Minimum 25dB Isolation
  • 2RU Rack High
  • -163dBc PIM with Low Insertion Loss
  • Interchangeable Modules for easy upgrades and/or
    Troubleshooting

13

Freq Bands/
Part Numbers		600(B71)
700-Cell		700-FN
(B14)		850PCSAWS-1
AWS-3		WCSBRSDoD
CBRS
C-Band
R242H-600-6000-D43Covers all Bands (600MHz – 6000MHz) (4.3-10 Connector)
R242H-600-6000-X10Covers all Bands (600MHz – 6000MHz) (NEX10 Connector)
Coupling Loss3.25 dB ± 1.00dB @ 600-4200 MHz

3.50 dB ± 1.10dB @ 4200-6000 MHz
Isolation25dB @ 600-4200 MHz

24dB @ 4200-6000 MHz
VSWR1.25:1
Impedance50 Ohms
Input Power / Port100 Watts (Avg)
Intermodulation (PIM - 3rd)-163dBc (2 Tones +43 dBm)
Connectors4.3-10 or NEX10
Temperature-30°C to +75°C
Rack Height2RU
Rack Tray Dimensions19.00”(W) x 3.45”(H) x 8.00”(D)

Electrical Specification

Mechanical Specification

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
