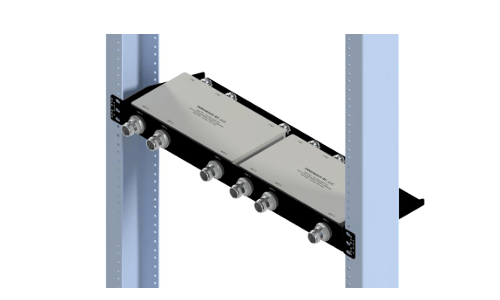

2x 4.8dB Hybrid Combiner on 19” Rack Tray (3x3 Hybrids)

R227H-600-6000-D43

1RU High, -163dBc PIM

FEATURES

  • 2x 4.8dB Hybrid Combiner (3×3 Hybrid) Modules
    for H-Frame / Rack-Mounted DRAN system
  •  2×2 MIMO solution with 2 combiners on a tray
  • 100W per Port of power handling
  •  Minimum 24dB Isolation
  •  1RU Rack High
  • -163dBc PIM with Low Insertion Loss
  •  Interchangeable Modules for easy upgrades and/or
    Troubleshooting

13

Freq Bands/
Part Numbers		600(B71)
700-Cel
700-FN
(B14)		850PCSAWS-1
AWS-3		WCSBRSDoD
CBRS
C-Band
R227H-600-6000-D43Covers all Bands (600MHz – 6000MHz)
Coupling Loss5.10 dB ± 1.00dB @ 600-2700 MHz

5.20 dB ± 1.00dB @ 2700-4200 MHz

5.20 dB ± 1.20dB @ 4200-6000 MHz br>
Isolation24dB @ 600-3800 MHz

23dB @ 3800-6000 MHz
VSWR1.25:1
Impedance50 Ohms
Input Power / Port100 Watts (Avg)
Intermodulation (PIM - 3rd)-163dBc (2 Tones +43 dBm)
Connectors4.3-10 or Nex10
Temperature-30°C to +70°C
Rack Height1RU
Rack Tray Dimensions19.00”(W) x 1.75”(H) x 9.50”(D)

Electrical Specification

Mechanical Specification
