2×2 3dB Public Safety Hybrid Coupler

221-137-960

138-960 MHz, Type-N Connector, IP65

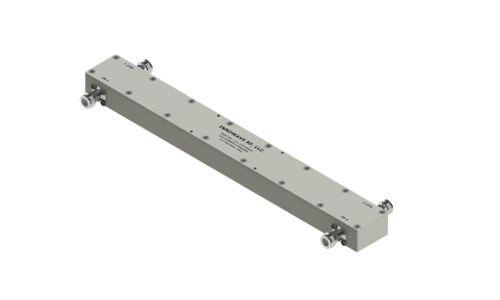

221-138-960 is a 4-Port, 3dB Hybrid Coupler used to combine VHF, UHF, 700MHz and 800MHz Public Safety bands, including the 900MHz Paging band. It can combine any 2 signals from 138MHz to 960MHz. The combined signal will appear at both the output ports. These are symmetric devices so inputs and outputs can be used interchangeably. It can also be used to split one input signal into 2 output ports. Available with Type-N connectors standard.

FEATURES

Combines 2 signals in the 138MHz – 960MHz
Cover VHF, UHF, 700MHz and 800MHz Public Safety bands and 900MHz Paging band
Best-in-class Isolation between the 2 signals
Very low Insertion Loss
Ease of Mounting with mounting holes
Type-N Connectors, standard
In Stock and Available Immediately

Electrical Specification

Frequency Range	138MHz – 960MHz
Coupling Loss	3.00 ± 1.00 dB
Isolation	24.00 dB
VSWR	1.25
Impedance	50 Ohms
Input Power	200 Watts (Avg) / port
DC By-pass	IN1 to OUT2 IN2 to OUT1

Mechanical Specification

Connectors	Type-N (Standard)
Housing Finish	Aluminum Body
Mounting Method	Mounting Holes
Temperature Range	-40°C to 70°C
Weight	3.00 lbs
Humidity	5% - 95%
Environment	IP65
