R952H Series

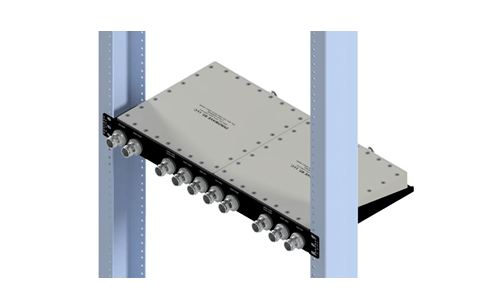

2x Pentaplexer/Multi-band Combiner on 19” Rack Tray

1RU High, -161dBc PIM

FEATURES

  • 2x Pentaplexer Modules for H-Frame / Rack-Mounted
    DRAN system
  • 2×2 MIMO solution with 2 combiners on a tray
  • Up to 5 bands can be combined per Carrier
  • Minimum 40dB Isolation
  • 1RU Rack High
  • -161dBc PIM with Low Insertion Loss
  • Interchangeable Modules for easy upgrades and/or
    Troubleshooting

Electrical Specification

Freq Bands
Part Numbers		600(B71)
700-Cell		700-FN (B14)850PCSAWS-1 AWS-3WCSBRSDoD CBRS
C-Band
R952H-820-3390-D43PORT 1PORT 1PORT 2PORT 3PORT 4PORT 6
R952H-1200-3840-D43PORT 1PORT 1PORT 1PORT 2PORT 3PORT 4PORT 4PORT 5
R952H-820-3390-D43PORT 1PORT 1PORT 2PORT 3PORT 4PORT 5PORT 5
Passband Insertion Loss0.40 dB
Isolation≥40 dB
Return Loss20 dB
Impedance50 Ohms
Input Power /Port150 Watts (Avg)
Intermodulation (PIM - 3rd)-161dBc (2 Tones +43 dBm)
Connectors4.3-10 or Nex10
Temperature-30°C to +70°C
Rack Height1RU
Rack Tray Dimensions13.95”(W) x 1.725”(H) x 11.98”(D)
*** For any other combination of bands, please contact us. ***

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
