IDR Pentaplexer Series

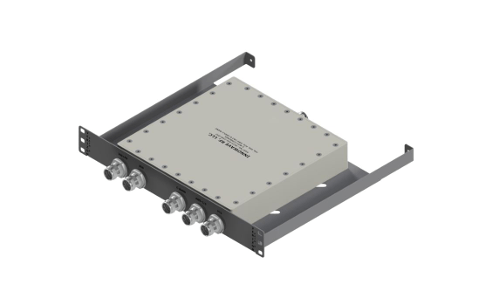

Pentaplexer/Multi-band Combiner for IDR Series DRAN System

-161dBc PIM

FEATURES

  • Pentaplexer Modules for IDR Series DRAN system
  • Up to 5 bands can be combined per Carrier
  • Minimum 40dB Isolation
  • -161dBc PIM with Low Insertion Loss
  • Interchangeable Modules for easy upgrades

Electrical Specification

Freq Bands
Part Numbers		600(B71)
700-Cell 		700-FN
(B14)		850 PCS AWS-1
AWS-3 		WCSBRS DoD
CBRS
C-Band
IDR951H-820-3390-D43PORT 1PORT 1PORT 2PORT 3PORT 4PORT 5
IDR951H-1200-3840-D43 PORT 1PORT 1PORT 1PORT 2PORT 3PORT 4PORT 4PORT 5
IDR951H-1250-2490-D43 PORT 1PORT 1PORT 2PORT 3PORT 4PORT 5PORT 5
Passband Insertion Los0.40 dB
Isolation ≥40 dB
Return Loss20 dB
Impedance50 Ohms
Input Power /Port150 Watts (Avg)
Intermodulation (PIM - 3rd)-161dBc (2 Tones +43 dBm)
Connectors 4.3-10 or Nex10
Temperature-30°C to +70°C
Rack Tray Dimensions13.95”(W) x 1.725”(H) x 11.98”(D)
*** For any other combination of bands, please contact us. ***

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
