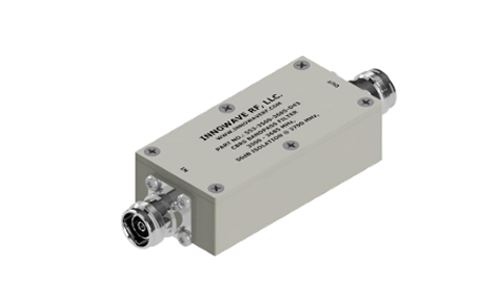

553-3500-3685

CBRS Bandpass Filter

3500-3685 MHz, 50dB Isolation @ 3700MHz, IP67

FEATURES

  • CBRS Bandpass Filter (3500-3685 MHz)
  • Eliminates any harmonics or bleeding from C-Band
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 or Type-N Connectors
  • RoHS Compliant
  • Ease of Mounting with mounting holes
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery

13

Electrical Specification

Mechanical Specification

Frequency Bands3500 MHz - 3685 MHz
Passband Insertion Loss ≤1.00 dB @ 3500 MHz – 3650 MHz
≤3.00 dB @ 3650 MHz - 3685 MHz
Isolation≥50 dB @ 3700 MHz
≥40 dB @ 3400 MHz
Return Loss 20 dB
Impedance 50 Ohms
Power Hnadling 20 Watts
Connectors Type-N or 4.3-10 Connector
Temperature Range-30°C to 75°C
Humidity 5% – 95%
Environment IP67
Weight1.50 lbs (Type-N) / 2.00 lbs (4.3-10)
