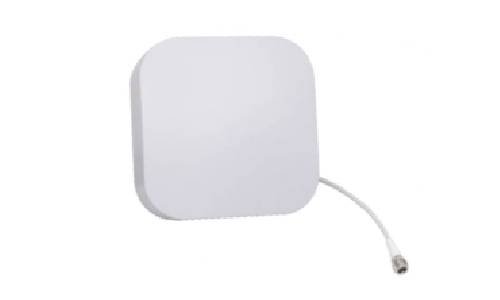

Compact Wideband Panel Mount Directional SISO Antenna

-155 dBc PIM, 600 – 960 / 1695 - 2700 / 3300 – 4200, Indoor

773-600-4200 is PIM-Rated, Wideband Panel Mount Directional SISO Antenna that allows facilities to support all cellular and non-cellular frequency bands from 600 MHz to 4200 MHz, including Public Safety, and C-Band. This SISO Antenna has exceptional directivity for all the application

FEATURES

  • Superior Performance across all bands from 600MHz to 4200MHz
  • Covers Cellular, C-Band & Wi-Fi/WiMAX bands
  • SISO, Low-Profile, Light Weight Antenna
  • High Gain, Low VSWR
  • Low PIM performance
  • Corrosion resistant and Anti-aging material
  • Wall/Pole Mount Mounting Bracket included.
  • RoHS Compliant
  • In Stock to low lead time delivery

Electrical Specification

Frequency Bands600-617617-698698-9601695-27003300-4200
Gain5.5 dBi5.5 dBi5.5 dBi8.0 dBi7.0 dBi
VSWR≤ 2.1≤ 2.0≤ 1.9≤ 1.8≤ 1.8
PolarizationVertical
Isolation≥ 9 dB≥ 10 dB≥ 10 dB≥ 20 dB≥ 24 dB
Front to Back Ratio≥ 8≥ 9≥ 10≥ 15≥ 11
Horizontal Beamwidth88°86°85°65°50°
Vertical Beamwidth74°74°74°60°45°
Input Impedance50 Ohms
Max Power50 Watts
Lightning ProtectionDC Ground
Intermodulation (PIM - 3rd)-155 dBc (Typ) (2 Tones +43 dBm)

ORDERING INFO:
4.3-10(F) Conn: 773-600-4200-D43
Type-N(F) Conn: 773-600-4200-N

MECHANICAL SPECIFICATIONS

Connectors4.3-10(F) (Standard)
Environmental ClassIndoor
MountingWall / Pole Mount
Dimension6.850” x 6.850” x 3.110”
Weight1.00 lbs
Reflector MaterialAluminum
Radome MaterialABS (UV Stabilized)
Radome ColorWhite (Standard)
Operating Temperature-40°C to +65°C

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
