PART #: 931C-1800-2490
932C-1800-2490
932C-1800-2490
PCS / AWS-1,AWS-3 / WCS,BRS Triplexer / Combiner
FEATURES
- Splits or combines the PCS Bands (1850MHz-2000MHz), AWS-1, AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2180MHz) and WCS, BRS Bands (2300MHz-2690MHz)
- Excellent Isolation between the bands
- Very low Insertion Loss with superior out of band rejections
- Available in DIN, Mini-DIN, 4.3-10 or Nex10 Connectors
- Low-PIM with High Power Handling
- Ease of Mounting with mounting holes and brackets
- RoHS Complaint
- Weatherproof for Outdoor use
- Stacked Unit Standard; Single Unit also available
Electrical Specification
Frequency Bands | Port 1 (1900) 1850-2000 MHz | Port 2 (2100) 1695-1780 & 2110-2180 MHz | Port 3 (2300, 2500) 2300-2690 MHz |
Passband Insertion Loss | 0.30 dB | ||
Isolation | ≥ 40dB @ 1695-1780 MHz ≥ 40dB @ 2110-2690 MHz | ≥ 40dB @ 1850-2000 MHz ≥ 40dB @ 2300-2690 MHz | ≥ 40dB @ 1695-2180 MHz |
Return Loss | 20 dB | ||
Impedance | 50 Ohms | ||
Input Power | 250 Watts (Avg); 500 Watts (Peak) | ||
Intermodulation (PIM - 3rd) | -161dBc (2 Tones +43 dBm) | ||
DC Pass Current | 3000mA (Typ) | ||
Lightning Protection | 8/20S 10kA Pulse (IEC 801-5) | ||
MTBF Hours | ≥ 500,000 |
Mechanical Specification
Connectors: | DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Nex10(X10) |
Housing Finish: | Aluminum Body |
Mounting Method: | Mounting Panel |
Weight: | 2.0 lbs (Single) / 4.0 lbs (Dual) |
Temperature Range: | -30°C to 60°C |
Humidity: | 5% - 95% |
Environment: | IP67 |
*** ORDERING INFO:

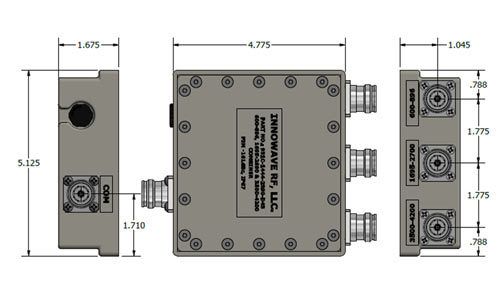

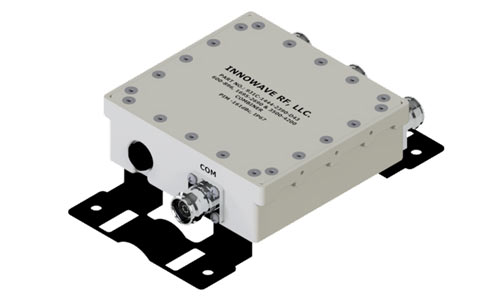

Single Model: Part#: 931C-1800-2490-*

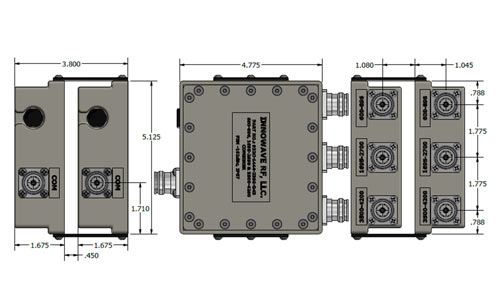

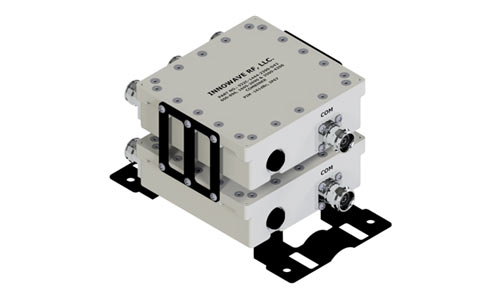

Dual Model: Part#: 932C-1800-2490-*
* – Connector Option
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
