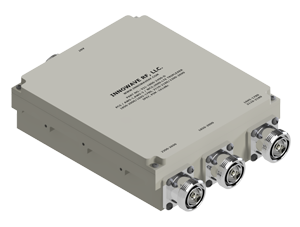

PCS / AWS-1, AWS-3 / WCS, 2600LTE Triplexer / Combiner
PART #:
931-1800-2490
FEATURES
- Splits or combines the PCS Band (1850MHz-2000MHz), AWS-1 & AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2180MHz) and WCS, BRS/2600MHz LTE Bands (2300MHz-2690MHz)
- Excellent Isolation between the bands
- Very low Insertion Loss with superior out of band rejections
- Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
- Low-PIM with High Power Handling
- Ease of Mounting with mounting holes and brackets
- RoHS Complaint
- Weatherproof for Outdoor use
- In Stock and Available Immediately
Electrical Specification
Frequency Bands | PCS | AWS-1 & AWS-3 | WCS, BRS/2600MHz LTE |
| 1850MHz - 2000MHz | 1695MHz - 1780MHz
2110MHz - 2180MHz
| 2300MHz - 2690MHz |
Passband Insertion Loss | 0.25 dB | 0.25 dB | 0.25 dB |
Isolation | ≥ 65 dB | ≥ 65 dB | ≥ 65 dB |
Return Loss | 21 dB | 21 dB | 21 dB |
Impedance | 50 Ohms | 50 Ohms | 50 Ohms |
Input Power | 400 Watts (Avg); 3000 Watts (Peak) | 400 Watts (Avg); 3000 Watts (Peak) | 400 Watts (Avg); 3000 Watts (Peak) |
Intermodulation (PIM - 3rd) | -161dBc (2 Tones +43 dBm) | -161dBc (2 Tones +43 dBm) | -161dBc (2 Tones +43 dBm) |
DC Pass Current | 3000mA (Typ) | 3000mA (Typ) | 3000mA (Typ) |
Lightning Protection | 8/20S 10kA Pulse (IEC 801-5) | 8/20S 10kA Pulse (IEC 801-5) | 8/20S 10kA Pulse (IEC 801-5) |
MTBF Hours | ≥ 500,000 | ≥ 500,000 | ≥ 500,000 |
Mechanical Specification
Connectors: | Type-N (N) / DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) |
Housing Finish: | Aluminum Body |
Mounting Method: | Mounting Holes |
Temperature Range: | -30°C to 60°C |
Humidity: | 5% – 95% |
Environment: | IP67 |

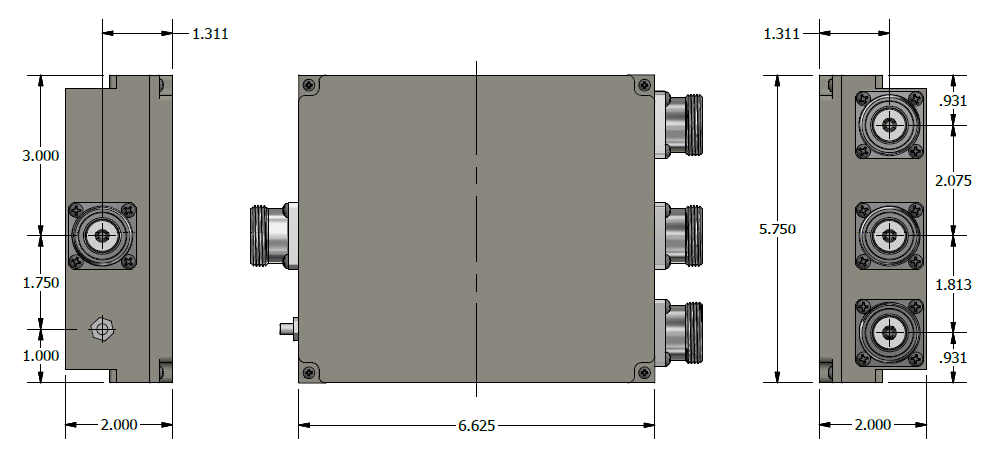

Dimensions for 931-1800-2490-D

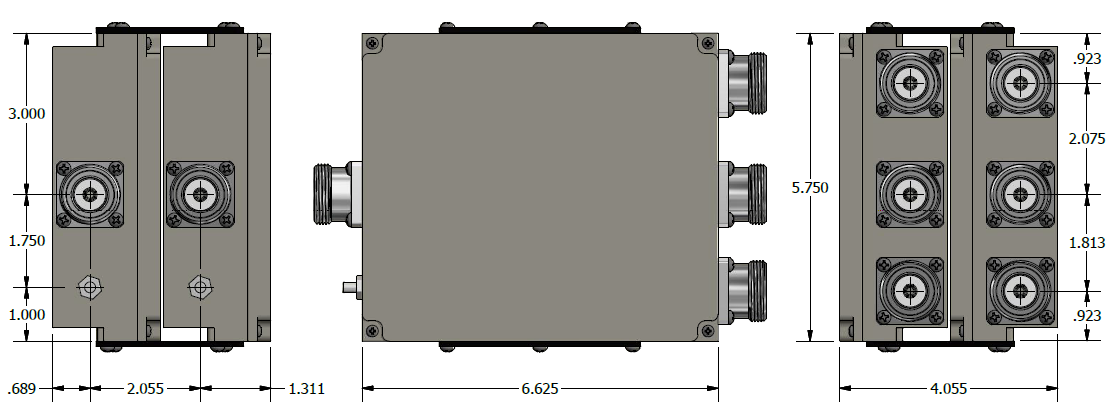

Dimensions for 932-1800-2490-D
© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.
For Complete Specifications, please download the PDF
