IDR306L-50_Series

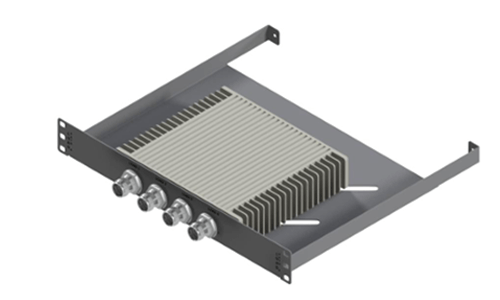

4x 50W Termination Array for IDR Series DRAN System

-161dBc PIM

FEATURES

  • Termination Module for IDR Series DRAN
    system
  • Each Module has 4x 50W Terminations with
    each having an independent RF Path.
  • 4.3-10 connectors’ standard. Available in
    Nex10 option as well
  • CBRS / C-Band / LTE-LAA Ready
  • -161dBc PIM with Low Insertion Loss
  • In Stock to low lead time delivery

13

ELECTRICAL & MECHANICAL SPECIFICATIONS

Frequency Range600 MHz – 6000 MHz
No. of Loads 8 (Independent RF Path)
VSWR ≤ 1.25 @ 600-3300 MHz
≤ 1.20 @ 3300-4200 MHz
≤ 1.30 @ 4200-6000 MHz
Power Handling 50 W (Avg)
Intermodulation (PIM - 3rd) -163 dBc (Typ) (2 Tones +43 dBm)
Impedance 50 Ohms
Temperature Range-30°C to 75°C
Weight 8.00 lbs
ConnectorsStandard - 4.3-10 (F)
Also Available in Nex10(F)
Relative Humidity 5% - 95%
Dimensions (in) 13.95”(W) x 1.725”(H) x 11.98”(D)

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
