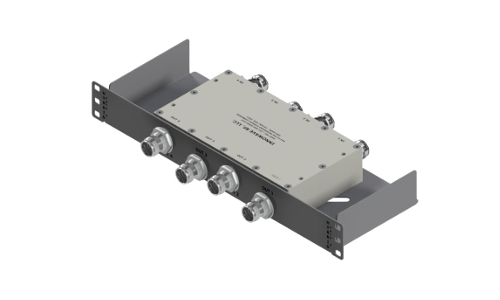

4x4 Hybrid Combiner for IDR Series DRAN System

IDR246-600-6000-D43

-161dBc PIM

FEATURES

  • 6dB Hybrid Combiner (4×4 Hybrid) Modules IDR
    Series DRAN system
  • 100W per Port of power handling
  • Minimum 24dB Isolation
  • -163dBc PIM with Low Insertion Loss
  • Interchangeable Modules for easy upgrades

13

Freq Bands/
Part Numbers		600(B71)
700-Cell		700-FN
(B14)		850PCSAWS-1
AWS-3		WCSBRSDoD
CBRS
C-Band
IDR231H-600-6000-D43Covers all Bands (600MHz – 6000MHz)
IDR244H-600-6000-D434x4 Hybrid Combiner with 3x Output Port Internally Terminated
Covers all Bands (600MHz – 6000MHz)
IDR245H-600-6000-D434x4 Hybrid Combiner with 2x Output Port Internally Terminated
Covers all Bands (600MHz – 6000MHz)
IDR246H-600-6000-D434x4 Hybrid Combiner with 1x Output Port Internally Terminated
Covers all Bands (600MHz – 600
Coupling Loss6.20 dB ± 0.80dB @ 600-2700 MHz

6.20 dB ± 0.80dB @ 2700-4200 MHz

6.35 dB ± 0.80dB @ 4200-6000 MHz
Isolation25dB @ 600-3800 MHz

24dB @ 3800-6000 MHz
VSWR1.25:1
Impedance50 Ohms
Input Power / Port100 Watts (Avg)
Intermodulation (PIM - 3rd)-163dBc (2 Tones +43 dBm)
Connectors4.3-10 or Nex10
Temperature-30°C to +70°C
Rack Tray Dimensions13.95”(W) x 1.725”(H) x 5.00”(D)

Electrical Specification

Mechanical Specification

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
