991-9-2000

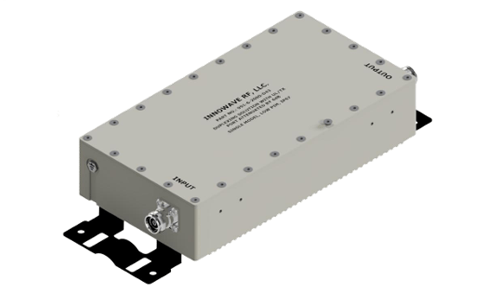

1900 & 2100 Duplexer with Attenuation on the DL/TX Port

9dB Attn on TX Port, -157dBc PIM, Single unit, IP67

FEATURES

  • Duplexing for
    o 1900 PCS Band Uplink (RX) (1850 – 1915 MHz) and Downlink (TX) (1930 – 2000 MHz)
    o 2100 AWS Band Uplink (RX) (1695 – 1780 MHz) and Downlink (TX) (2110 – 2200 MHz)
  • 9dB Attenuation on Downlink / TX Ports.
  • Pass-through for Uplink / RX Ports. 0.50 dB (Typ) insertion loss
  • Single unit. Dual /Stacked units Available
  • Superior Insertion Loss and out of band rejections
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • Available in 4.3-10 or NEX10 Connectors
  • RoHS Compliant
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

13

Electrical Specification

Frequency BandsDownlink Freq (TX)
1930MHz – 2000MHz
2110MHz – 2200MHz 		Uplink Freq (RX)
1850MHz – 1915MHz
1695MHz – 1780MHz
Passband Insertion LossWith 6dB Attn --- 6.30 dB ± 0.50 dB0.50 dB ± 0.25 dB
Isolation50 dB
@ 1850MHz – 1915MHz
@ 1695MHz – 1780MHz 		50 dB
@ 1930MHz – 2000MHz
@ 2110MHz - 2200MHz
≥ 35dB @ 600MHz – 1600MHz and 2300MHz – 2700MHz
Return Loss20 dB
Impedance50 Ohms
Input Power /Port100 Watts (Avg)
Intermodulation (PIM - 3rd)-157 dBc (2 Tones +43 dBm)
MTBF Hours≥ 500,000

Mechanical Specification

Connectors4.3-10 (D43)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
Temperature Range-35°C to 75°C
Weight9.00 lbs
Relative Humidity5% - 95%
EnvironmentIP67
