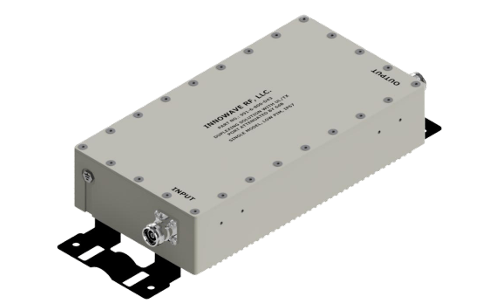

700 MHz & 850 MHz Duplexer with Attenuation on the DL/TX Port

991-6-800

Duplexing for
o 700 MHz Band Uplink (RX) (699 – 716 and 777 – 798 MHz) and Downlink (TX) (729 – 746
and 746 – 768 MHz)
o 850 MHz Band Uplink (RX) (824 – 849 MHz) and Downlink (TX) (869 – 894 MHz)
6dB Attenuation on Downlink / TX Ports.
Pass-through for Uplink / RX Ports. 0.50 dB (Typ) insertion loss
Single unit. Dual /Stacked units Available
Superior Insertion Loss and out of band rejections
Ease of Mounting with mounting holes and brackets
Low-PIM with High Power Handling
Available in 4.3-10 or NEX10 Connectors
RoHS Compliant
Weatherproof for Outdoor installation
In Stock and Available Immediately

Frequency Bands	Downlink Freq (TX) 729MHz – 746MHz 746MHz – 769MHz 869MHz – 894MHz	Uplink Freq (RX) 699MHz – 716MHz 777MHz – 798MHz 824MHz – 849MHz
Passband Insertion Loss	With 6dB Attn --- 6.30 dB ± 0.50 dB	0.50 dB ± 0.25 dB
Isolation	50 dB @ 699MHz – 716MHz @ 777MHz – 798MHz @ 824MHz – 849MHz	50 dB @ 729MHz – 746MHz @ 746MHz – 769MHz @ 869MHz – 894MHz
	≥ 35dB @ 1600MHz – 2700MHz
Return Loss	20 dB
Impedance	50 Ohms
Input Power /Port	100 Watts (Avg)
Intermodulation (PIM - 3rd)	-157 dBc (2 Tones +43 dBm)
MTBF Hours	≥ 500,000
