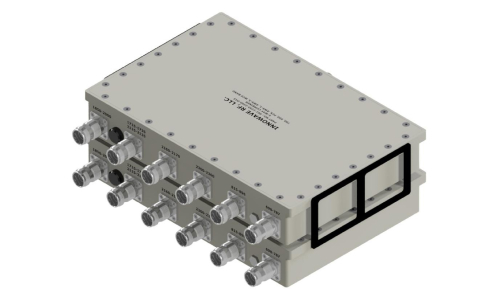

962C-1250-3800-D43

600,700+FN / 850 / PCS / AWS / DoD/ C-Band Combiner / Hexaplexer

-161dBc PIM, IP67, Stacked Model

FEATURES

  • Splits or combines 600(B71), 700+FN Bands (617MHz-798MHz), 850 Bands (815MHz-896MHz), PCS Band (1850MHz-2000MHz), AWS-1, AWS-3 Bands (1695MHz-1780MHz & 2110MHz2200MHz), DoD Band (3450MHz-3550MHz) and C-Band (3700MHz-4200MHz)
  • Dual Stacked Unit for MIMO applications
  • Minimum 40dB Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 or NEX10 Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Compliant
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands600,700+FN850PCSAWS1,AWS3DoDC-Band
617-798815-8961850-20001695-17803450-35503700-4200
2110-2200
Passband Insertion Loss0.45 dB
Isolation≥ 40 dB
Return Loss21 dB
Impedance50 Ohms
Input Power /Port150 Watts (Avg)
DC Pass Current4000 mA (Typ)
(DC Block Available on Request)
Intermodulation (PIM-3rd)-161dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10KA Pulse (IEC801-5)
MTBF Hours≥ 500,000

MECHANICAL SPECIFICATIONS

Connectors4.3-10 (D43) / NEX10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
Temperature Range-30°C to 75°C
Weight12.5 lbs
Relative Humidity5% - 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
