952C-1250-2490

700+FN / 850 / PCS / AWS-1, AWS-3 / WCS, BRS Pentaplexer / Combiner

698-896/815-896/1850-2000/1695-1780,2110-2200/2300-2690, -161dBc

FEATURES

  • Splits or combines 700LTE+FN Band (698MHz-787MHz), 850 Band (815MHz-896MHz), PCS Band (1850MHz-2000MHz), AWS-1, AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2200MHz) and WCS, BRS Bands (2300MHz-2690MHz)
  • Stacked / Dual unit for MIMO applications
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Complaint
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

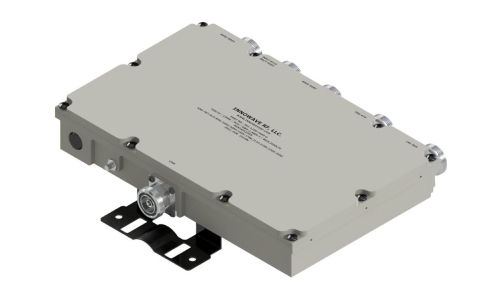

952C-1250-2490-1

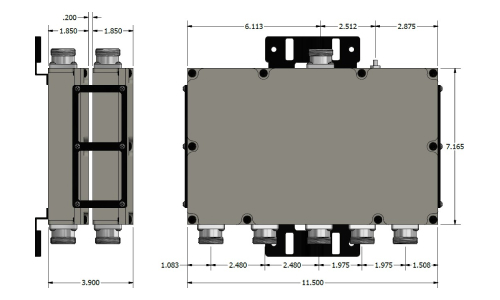

952C-1250-2490-2

Electrical Specification

[table id=264 /]

Mechanical Specification

Connectors7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing FinishAluminum Body
Mounting MethodMounting Panel
Weight13 lbs
Temperature Range-35°C to 75°C
Relative Humidity5% - 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
