951C-820-3390
700+FN/850/PCS/AWS-1,AWS-3 /CBRS,C-Band Pentaplexer / Combiner
698-798/815-896/1850-2000/1695-1780,2110-2200/3300-4200, -161dBc
FEATURES
- Splits or combines 700+FN (698MHz-798MHz), 850 Bands (815MHz-896MHz), PCS Band (1850MHz-2000MHz), AWS-1, AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2200MHz) and CBRS,C-Band (3300MHz-4200MHz)
- Excellent Isolation between the bands
- Very low Insertion Loss with superior out of band rejections
- Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
- Ease of Mounting with mounting holes and brackets
- Low-PIM with High Power Handling
- RoHS Complaint
- Weatherproof for Outdoor installation
- In Stock and Available Immediately
Electrical Specification
[table id=259 /]
Mechanical Specification
Connectors | 7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N) |
Housing Finish | Aluminum Body |
Mounting Method | Mounting Panel |
Weight | 6.25 lbs |
Temperature Range | -35°C to 75°C |
Relative Humidity | 5% - 95% |
Environment | IP67 |

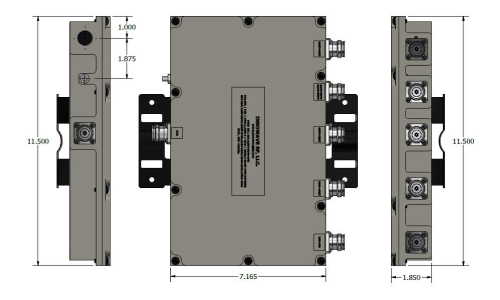

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
