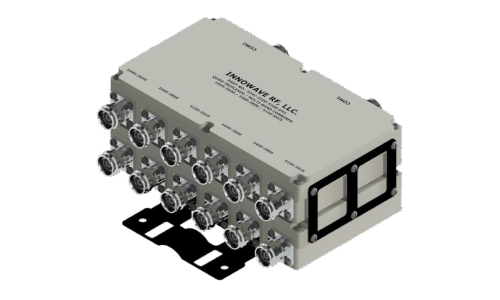

944C-3200-5100

Cellular / CBRS,C-Band / LTE-LAA Combiner / Triplexer

-161dBc PIM, 1695-2690 / 3300-4200 / 5150-5925, IP67

FEATURES

  • Splits or combines the PCS, AWS-1, AWS-3, WCS, BRS Bands (1695MHz-2690MHz), CBRS, C-Band (3300MHz-4200MHz) and LTE-LAA Band (5150MHz-5925MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Suitable for MIMO applications.
  • Available in DIN, Mini-DIN, 4.3-10 or Nex10 Connectors
  • Low-PIM with High Power Handling
  • Ease of Mounting with mounting holes and brackets
  • RoHS Complaint
  • Weatherproof for Outdoor use
  • Single and Stacked Units also available

Electrical Specification

Frequency BandsPort 1
(1900,2100,2300,2500)
1695-2690 MHz
Port 2
(CBRS, C-Band)
3300-4200 MHz
Port 3
(LTE-LAA)
5150-5925 MHz
Passband Insertion Loss0.25 dB
Isolation≥ 40dB @ 3300-4200 MHz
≥ 40dB @ 5150-5925 MHz
≥ 40dB @ 1695-2690 MHz
≥ 40dB @ 5150-5925 MHz
≥ 40dB @ 1695-2690 MHz
≥ 40dB @ 3300-4200 MHz
Return Loss20 dB
Impedance50 Ohms
Input Power100 Watts (Avg)10W (Avg)10W (Avg)
Intermodulation (PIM - 3 rd)-161dBc (2 Tones +43 dBm)
DC Pass Current3000mA (Typ) Pass-Through on Port1
Lightning Protection8/20S 10kA Pulse (IEC 801-5)
MTBF Hours≥ 500,000

Mechanical Specification

ConnectorsDIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Nex10(X10)
Housing FinishAluminum Body
Mounting MethodMounting Holes
Weight7.5 lbs (Quad)
Temperature Range-30°C to 60°C
Humidity5% – 95%
EnvironmentIP67

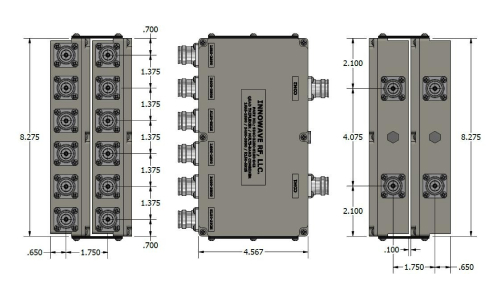

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
