942C-800-3390

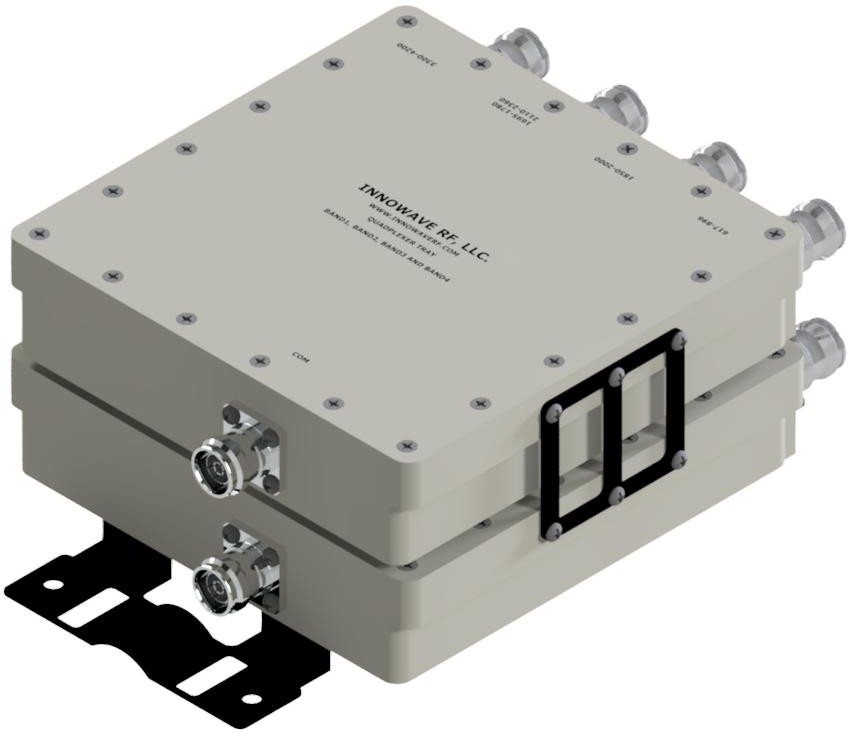

600,700+FN,850/PCS/AWS-1&3,WCS /CBRS,C-Band Combiner / Quadplexer

-161dBc PIM, IP67, Stacked Model

FEATURES

  • Splits or combines 600(B71), 700+FN & 850 Bands (617MHz-896MHz), PCS Band (1850MHz2000MHz), AWS-1, AWS-3, WCS Bands (1695MHz-1780MHz & 2110MHz-2360MHz) and CBRS,CBand (3300MHz-4200MHz)
  • Stacked / Dual unit for MIMO applications
  • Minimum 40dB Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 or NEX10 Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Compliant
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands600, 700+FN, 850PCSAWS-1&3, WCSCBRS,C-BAND
617MHz - 896MHz1850MHz - 2000MHz1695MHz - 1780MHz3300MHz - 4200MHz
2110MHz - 2360MHz
Passband Insertion Loss0.30 dB
Isolation≥ 40 dB
Return Loss21 dB
Impedance50 Ohms
Input Power / Port150 Watts (Avg)
DC Pass Current4000 mA (Typ)
(DC Block Available on Request)
Intermodulation (PIM-3rd)-161dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10KA Pulse (IEC801-5)
MTBF Hours≥ 500,000

MECHANICAL SPECIFICATIONS

Connectors4.3-10 (D43) / NEX10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
Weight11.00 lbs
Temperature Range-30°C to 75°C
Relative Humidity5% - 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
