942C-2050-3700

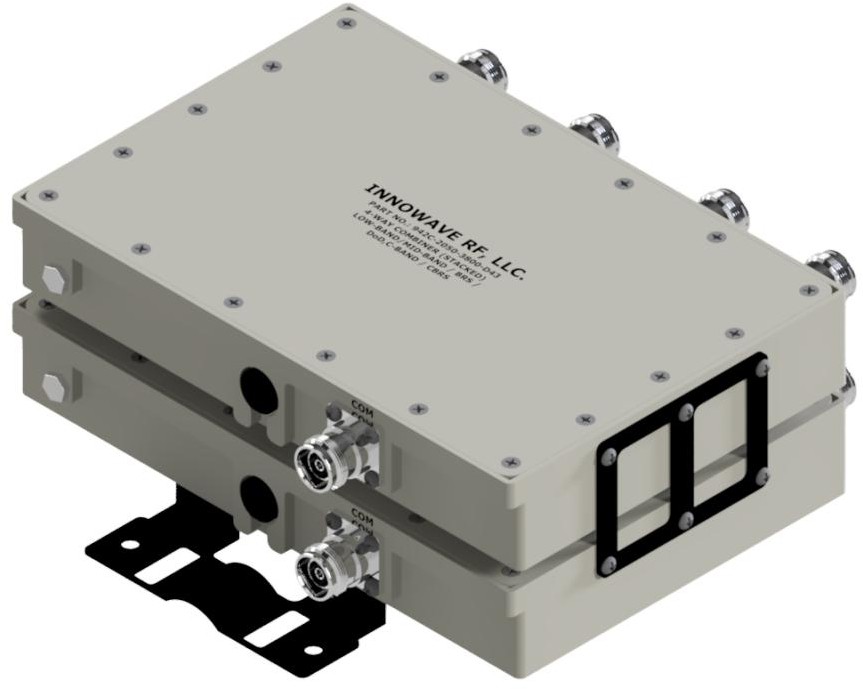

Low-Band, Mid-Band / BRS / CBRS / DoD, C-Band Combiner / Quadplexer

-161dBc PIM, IP67, Stacked Model

FEATURES

  • Splits or combines the Low-Band & Mid-Band (617MHz-2360MHz), BRS Band (2496MHz-2690MHz), CBRS Band (3550MHz-3700MHz), DoD & C-Band (3450MHz-3530MHz, 3720MHz-4200MHz)
  • Stacked / Dual unit for MIMO applications
  • Minimum 40dB Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 or NEX10 Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Compliant
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands600(B71)/700+FNBRSCBRSDoD/C-Band
850/PCS/AWS/WCS2496MHz - 2690MHz3550MHz - 3700MHz3450MHz - 3530MHz
617MHz - 2360MHz3720MHz – 4200MHz
Passband Insertion Loss0.30 dB
Isolation≥ 40 dB
Return Loss21dB
Impedance50 Ohms
Input Power / Port150 Watts (Avg)
DC Pass Current4000 mA (Typ)
(DC Block Available on Request)
Intermodulation (PIM-3rd)*-161dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10KA Pulse (IEC801-5)
MTBF Hours≥ 500,000

MECHANICAL SPECIFICATIONS

Connectors4.3-10 (D43) / NEX10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
Weight13.00 lbs
Temperature Range-30°C to 75°C
Humidity5% – 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
