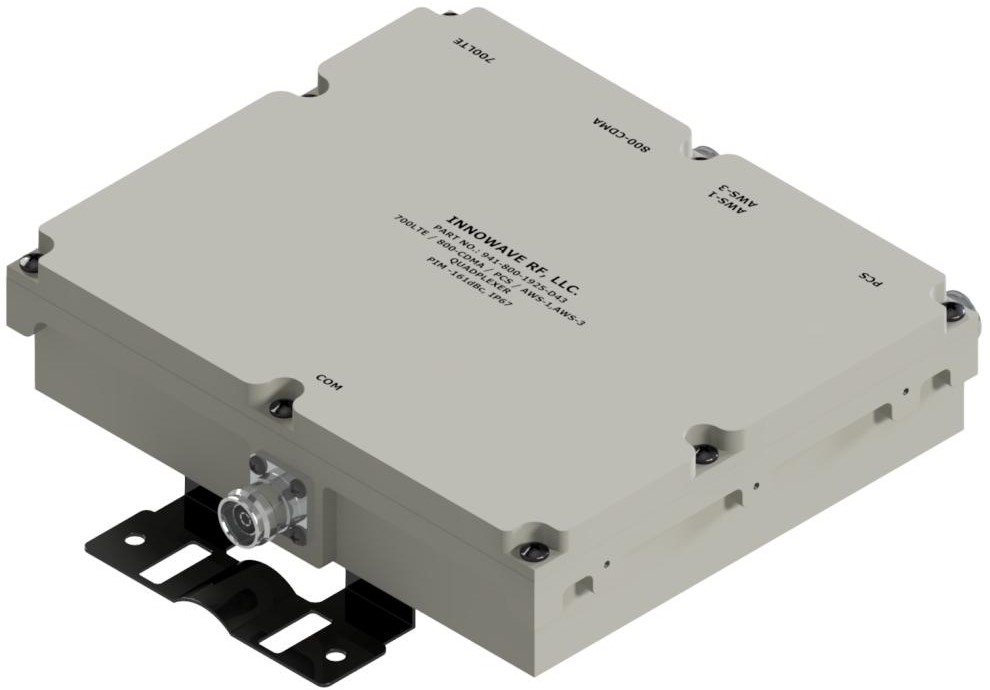

941C-800-1925

600,700+FN / 850 / PCS / AWS-1,AWS-3 Combiner / Quadplexer

-161dBc PIM, IP67, Single Model

FEATURES

  • Splits or combines the 600(B71), 700+FN Bands (617MHz-798MHz), 850 Band (815MHz896MHz), PCS Band (1850MHz-2000MHz), AWS-1 & AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2200MHz)
  • Minimum 40dB Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 or NEX10 Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Compliant
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands600, 700+FN850PCSAWS-1/AWS-3
617MHz - 798MHz815MHz - 896MHz1850MHz - 2000MHz1695MHz - 1780MHz
2110MHz - 2200MHz
Passband Insertion Loss0.30 dB
Isolation≥ 40 dB
Return Loss21dB
Impedance50 Ohms
Input Power / Port150 Watts (Avg)
DC Pass Current4000 mA (Typ)
(DC Block Available on Request)
Intermodulation (PIM-3rd)*-161dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10KA Pulse (IEC801-5)
MTBF Hours≥ 500,000

MECHANICAL SPECIFICATIONS

Connectors4.3-10 (D43) / NEX10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
WeightWeight
Temperature RangeTemperature Range
Humidity5% – 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
