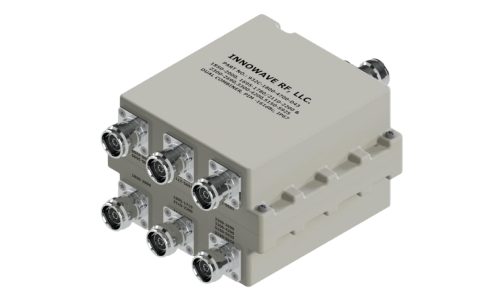

PCS / AWS-1,AWS-3 / WCS,BRS,CBRS, C-Band, LTE-LAA Dual Triplexer/Combiner

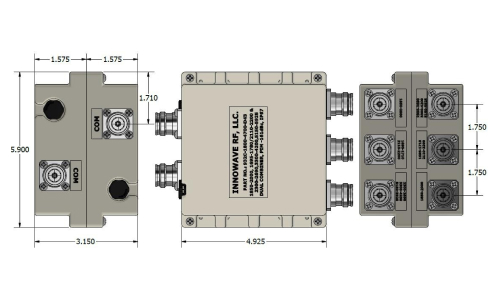

932C-1800-4700

Splits or combines the PCS Bands (1850-2000 MHz), AWS-1, AWS-3 Bands (1695-1780, 2110-2200 MHz) and WCS, BRS, CBRS, C-Band, LTE-LAA (2300-2690, 3300-4200, 5150-6000 MHz)
Available in SINGLE (931C) & DUAL (932C) models
Excellent Isolation between the bands
Very low Insertion Loss with superior out of band rejections
Low-PIM with High Power Handling
Ease of Mounting with mounting holes and brackets
RoHS Complaint
Weatherproof for Outdoor use

Frequency Bands	Port 1 (1900) 1850-2000 MHz	Port 2 (2100) 1695-1780 & 2110-2200 MHz	Port 3 (WCS, BRS, CBRS, C- Band, LTE-LAA) 2300-2690, 3300-4200, 5150-6000 MHz
Passband Insertion Loss	0.50 dB
Isolation	≥ 40dB @ 1695-1780 MHz ≥ 40dB @ 2110-6000 MHz	≥ 40dB @ 1850-2000 MHz ≥ 40dB @ 2300-6000 MHz	≥ 40dB @ 1695-2200 MHz
Return Loss	18 dB
Impedance	50 Ohms
Input Power	200 Watts (Avg); 500 Watts (Peak)
Intermodulation (PIM - 3 rd)	-161dBc (2 Tones +43 dBm)
Lightning Protection	8/20S 10kA Pulse (IEC 801-5)
MTBF Hours	≥ 500,000
