932C-1600-3390

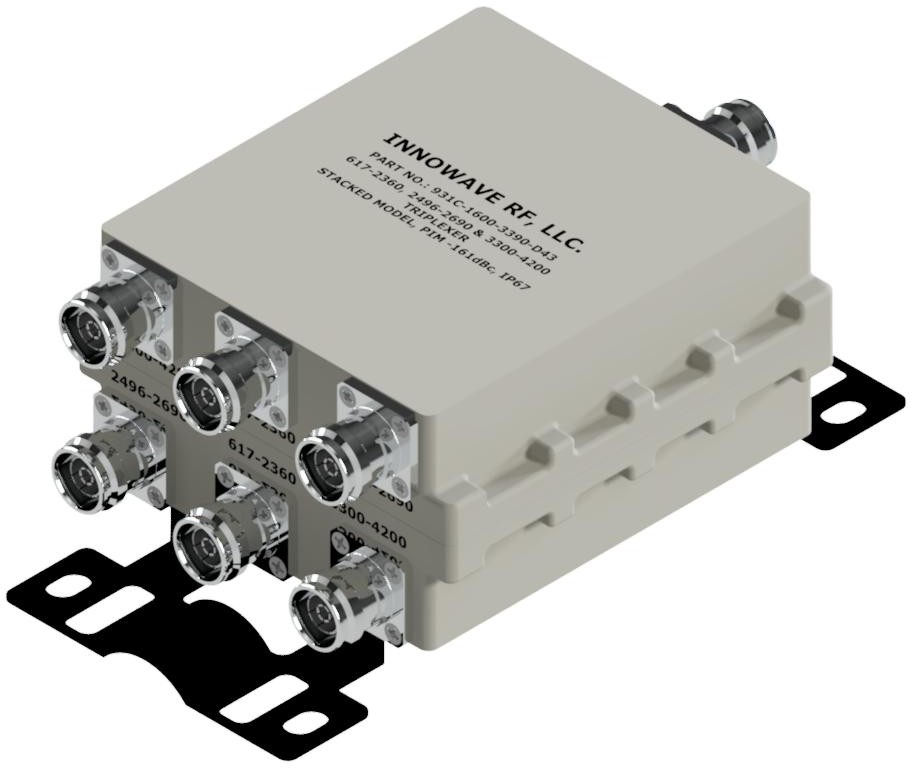

600,700,850,PCS,AWS,WCS/BRS/CBRS,C-Band Combiner / Triplexer

-161dBc PIM, IP67, Stacked Model

FEATURES

  • Splits or combines the 600 (B71), 700, 850, PCS, AWS-1&3, WCS Bands (617MHz-2360MHz) and BRS Band (2496MHz-2690MHz), CBRS, C-Band (3300MHz-4200MHz)
  • Available in Single Model (931C Series)
  • Minimum 40dB Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 or NEX10 Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Compliant
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands600, 700, 850, PCS, AWS, WCSBRSCBRS, C-Band
617MHz - 2360MHz2496MHz - 2690MHz3300MHz - 4200MHz
Passband Insertion Loss0.25 dB (Typ)
Isolation≥ 40 dB (Typ)
Return Loss21 dB (Typ)
Impedance50 Ohms
Input Power / Port150 Watts (Avg)
Intermodulation (PIM - 3rd)-161dBc (Min) (2 Tones +43 dBm)
DC Pass Current4000 mA (Typ)
(DC Block Available on Request)
Lightning Protection8/20S 10kA Pulse (IEC801-5)
MTBF Hours≥ 500,000

MECHANICAL SPECIFICATIONS

Connectors4.3-10 (D43) / NEX10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
Temperature Range-30°C to 75°C
Humidity5% – 95%
Weight9.00 lbs
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
