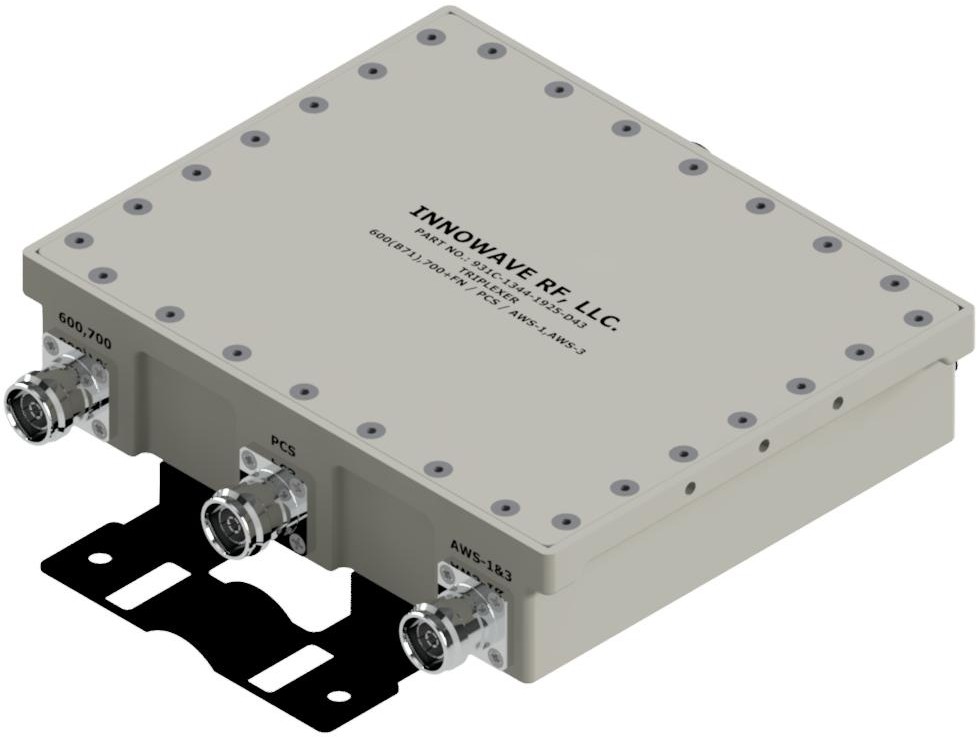

931C-1344-1925

600,700+FN/PCS/AWS-1,AWS-3 Combiner / Triplexer

-161dBc PIM, IP67, Single Model

FEATURES

  • Splits or combines the 600 (B71), 700+FN Band (617MHz-798MHz), AWS-1, AWS-3 Bands (1695MHz-1780MHz & 2110MHz-2200MHz) and PCS Band (1850MHz-2000MHz)
  • Available in Dual / Stacked Model (932C Series)
  • Minimum 40dB Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 or NEX10 Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Compliant
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands600, 700 + FNAWS-1, AWS-3PCS
617MHz - 798MHz1695MHz - 1780MHz1850MHz - 2000MHz
2110MHz – 2200MHz
Passband Insertion Loss0.25 dB
Isolation≥ 40 dB
Return Loss21 dB
Impedance50 Ohms
Input Power / Port150 Watts (Avg)
Intermodulation (PIM - 3rd)-161dBc (2 Tones +43 dBm)
DC Pass Current4000 mA (Typ)
(DC Block Available on Request)
Lightning Protection8/20S 10kA Pulse (IEC801-5)
MTBF Hours≥ 500,000

MECHANICAL SPECIFICATIONS

Connectors4.3-10 (D43) / NEX10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
Temperature Range-30°C to 75°C
Humidity5% – 95%
Weight4.00 lbs
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
