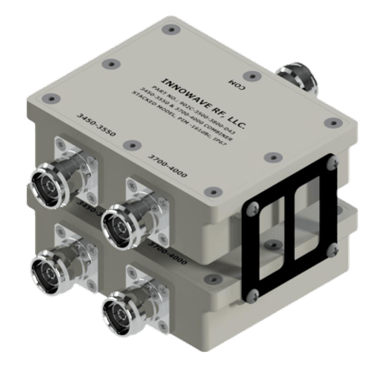

902c-3500-3800

DoD Band / C-Band Combiner / Diplexer

-161dBc PIM, IP67, Stacked Model

FEATURES

  • Splits or combines the DoD Band (3450MHz–3550MHz) and C-Band (3700MHz–4200MHz)
  • Available in Single Model (901C Series), Twin Model (903C Series) & Quad Model
    (904C Series)
  • Minimum 40dB Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 or NEX10 Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Compliant
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency BandsDoD BandC-Band
3450MHz-3550MHz3700MHz-4200MHz
Passband Insertion Loss0.20 dB
Isolation≥40 dB
Return Loss21 dB
Impedance50 Ohms
Input Power / Port150 Watts (Avg)
DC Pass Current4000 mA (Typ)
(DC Block Available on Request)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)
MTBF Hours≥ 500,000

MECHANICAL SPECIFICATIONS

Connectors4.3-10 (D43) / NEX10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
Temperature Range-30°C to 75°C
Humidity5% – 95%
Weight7.00 lbs
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
