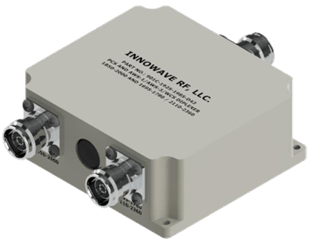

Low-Band Cellular / Mid-Band Cellular Combiner / Diplexer

-161dBc PIM, IP67, Single Model

FEATURES

  • Splits or combines the 600-B71/700+FN/850 Bands (617MHz-896MHz) and PCS/AWS1&3/WCS/BRS/CBRS and C-Band (1695MHz-2690MHz)
  • Available in Dual / Stacked Model (902C Series), Twin Model (903C Series) & Quad
    Model (904C Series)
  • Minimum 40dB Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 or NEX10 Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Compliant
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands600(B71), 700+FN, 850PCS, AWS-1&3, WCS, BRS
617 MHz - 896 MHz1695 MHz – 2690 MHz
Passband Insertion Loss0.20 dB
Isolation≥40dB
Return Loss21 dB
Impedance50 Ohms
Input Power / Port150 Watts (Avg)
DC Pass Current4000 mA (Typ)
(DC Block Available on Request)
Intermodulation (PIM - 3rd)-161dBc (Min) (2 Tones +43 dBm)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)
MTBF Hours≥ 500,000

MECHANICAL SPECIFICATIONS

Connectors4.3-10 (D43) / NEX10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
Temperature Range-30°C to 75°C
Humidity5% – 95%
Weight3.75 lbs
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
