901c-1700-4700

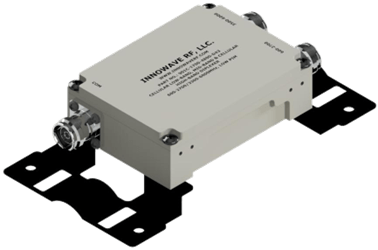

Low-Band, Mid-Band Cellular & CBRS, C-Band, LTE-LAA Combiner / Diplexer

-161dBc PIM, IP67, Single Model

FEATURES

  • Splits or combines Cellular Freq in the 600/700+FN/850/AWS-1/AWS-3/PCS/WCS/BRS Bands (617MHz-2690MHz) and CBRS/C-Band/LTE-LAA Bands (3300MHz-4200MHz, 5150MHz-5925MHz)
  • Available in Dual / Stacked Model (902C Series), Twin Model (903C Series) & Quad
    Model (904C Series)
  • Minimum 40dB Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 or NEX10 Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Compliant
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands600,700+FN,850,PCS,AWS-1&3,WCS,BRSCBRS,C-Band,LTE-LAA
617 MHz - 896 MHz3300 MHz – 4200 MHz
1695 MHz – 2690 MHz5150 MHz – 5925 MHz
Passband Insertion Loss0.25 dB
Isolation≥ 40 dB
Return Loss18 dB
Impedance50 Ohms
Input Power / Port150 Watts (Avg)
DC Pass Current4000 mA (Typ) (Available on Port1) (DC Block Available on Request)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)
MTBF Hours≥ 500,000

MECHANICAL SPECIFICATIONS

Connectors4.3-10 (D43) / NEX10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Bracket
Temperature Range-30°C to 75°C
Humidity5% – 95%
Weight4.25 lbs
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
