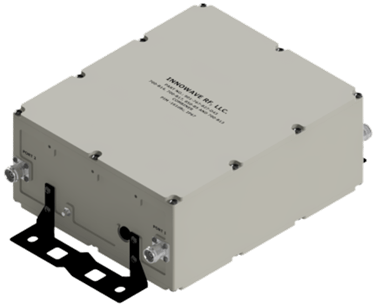

901-767-827

700-B12/B14/B17, 850-B5 / 700-B13 Combiner / Diplexer

-161dBc PIM, IP67, Single Model

FEATURES

  • Splits or combines the 700 Band 14, 700 Band 12, 700 Band 17,
    850 Band and 700 Band 13
  • Very low Insertion Loss with superior out of band rejections
  • Excellent Isolation between the 2 ports
  • -161dBc PIM on both ports
  • Easy mounting with mounting brackets included
  • Standard 4.3-10 Connectors
  • RoHS Complaint
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery

Electrical Specification

Frequency Bands700 B12/B14/B17, 850 B5700 B13
699–744.50, 758–768, 788.50–896 MHz746–756, 777–787 MHz
Passband Insertion Loss≤ 1.0 dB
Isolation≥30dB≥30dB
@ 746–756, 777–787 MHz@ 699–744.50, 758–768, 788.50–896 MHz
Return Loss≥ 18 dB
Impedance50 Ohms
Input Power / Port150 Watts (Avg)
DC Pass Current4000 mA (Typ)
(DC Block Available on Request)
Lightning Protection8/20S 10kA Pulse (IEC 801-5) (On Request)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)
MTBF Hours≥ 500,000

MECHANICAL SPECIFICATIONS

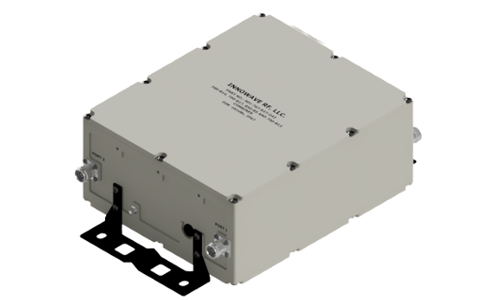

Connectors4.3-10 (D43) (Standard)
Other Connector Options Available
Mounting MethodMounting Bracket
Temperature Range-30°C to 75°C
Weight24.00 lbs
Relative Humidity5% - 95%
EnvironmentIP67

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
