PART #: 901-1700-4700

600,700,850,AWS,PCS,WCS,BRS and CBRS, LTE-LAA Diplexer / Combiner

FEATURES

  • Splits or combines Cellular Freq in the 600/700/GSM/CDMA/AWS-1/AWS-3/PCS/WCS/BRS Bands and CBRS/LTE-LAA Bands
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Low-PIM with High Power Handling
  • RoHS Complaint
  • Ease of Mounting with mounting holes
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery

BLOCK DIAGRAM FOR 901-1700-4700

Electrical Specification

Frequency Bands600,700,GSM,CDMA,AWS-1&3,PCS,WCS,BRS
600 MHz - 2700 MHz		CBRS,LTE-LTE
3500 MHz – 6000 MHz
Passband Insertion Loss0.30 dB
Isolation≥60 dB @ 3500MHz-6000MHz≥60 dB @ 600MHz-2700MHz
Return Loss18 dB
Impedance50 Ohms
Input Power200 Watts (Avg); 1000 Watts (Peak)
DC Pass Current4000 mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)

Mechanical Specification

Connectors:7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Nex10(X10)
Housing Finish: Aluminum Body
Mounting Method:Mounting Holes
Weight: 2.00 lbs
Temperature Range:-20°C to 80°C
Humidity: 5% – 95%
Environment:IP67

*** ORDERING INFO:

Single Model: Part#: 901-1700-4700-*

Dual Model: Part#: 902-1700-4700-*

* – Connector Option

Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.

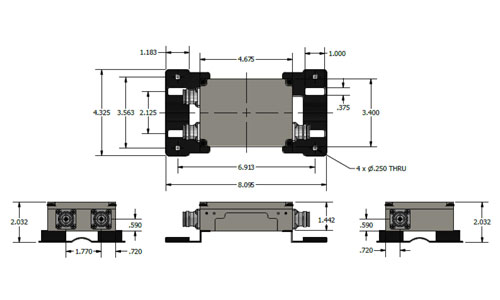

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
