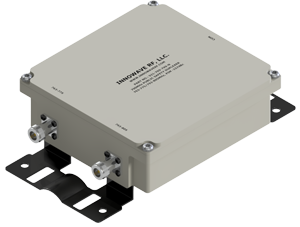

700MHz Public Safety Band Duplexer / Same Band Combiner

PART #:

921-769-799
FEATURES

  • Splits or combines the Uplink (763-775) and Downlink (793-805) frequencies for 700MHz Public Safety Band
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Low-PIM with High Power Handling
  • -161dBc PIM and DC By-Pass available on request
  • Available in Type-N, 7/16 DIN, Mini-DIN and 4.3-10 Connectors
  • Weatherproof / Outdoor unit (921W Series) also available
  • RoHS Complaint
  • In Stock to low lead time delivery

Electrical Specification

Frequency BandsDownlink Freq 793MHz - 805MHz Uplink Freq 763MHz – 775MHz
Passband Insertion Loss0.50 dB
Isolation65dB
Return Loss20 dB
Impedance50 Ohms
Lightning Protection8/20S 10kA Pulse (IEC 801-5) (Available on Request)
Input Power /Port100 Watts (Avg)
Intermodulation (PIM - 3rd)-157 dBc (2 Tones +43 dBm)
MTBF Hours ≥ 500,000

Mechanical Specification

Connectors:7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing Finish: Aluminum Body
Mounting Method:Mounting Bracket
Temperature Range:-35°C to 75°C
Weight: 3.00 lbs
Relative Humidity:5% – 95%
Environment: IP65

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
