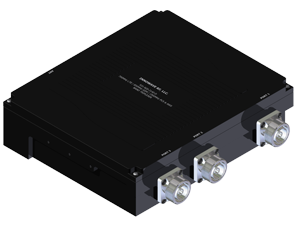

700MHz LTE / 850-CDMA, GSM / PCS, AWS-1, AWS-3 Triplexer / Combiner
PART #:
931-820-2140
FEATURES
- Splits or combines the 700MHz LTE Band (698MHz-798MHz), 850MHz CDMA, GSM Bands (824MHz-960MHz) and PCS/AWS-1/AWS-3 Bands (1695MHz-2180MHz)
- Excellent Isolation between the bands
- Very low Insertion Loss with superior out of band rejections
- Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
- Low-PIM with High Power Handling
- Ease of Mounting with mounting holes and brackets
- RoHS Complaint
- Weatherproof for Outdoor use
- In Stock and Available Immediately
Electrical Specification
Frequency Bands | 700 MHz LTE | 850 MHz CDMA/GSM | PCS/AWS-1/AWS-3 |
| 698MHz - 798MHz | 824MHz - 960MHz | 1695MHz - 2180MHz |
Passband Insertion Loss | 0.25 dB | 0.25 dB | 0.25 dB |
Isolation | ≥ 65 dB | ≥ 65 dB | ≥ 65 dB |
Return Loss | 21 dB | 21 dB | 21 dB |
Impedance | 50 Ohms | 50 Ohms | 50 Ohms |
Input Power | 400 Watts (Avg); 3000 Watts (Peak) | 400 Watts (Avg); 3000 Watts (Peak) | 400 Watts (Avg); 3000 Watts (Peak) |
Intermodulation (PIM - 3rd) *** | -161dBc (2 Tones +43 dBm) | -161dBc (2 Tones +43 dBm) | -161dBc (2 Tones +43 dBm) |
DC Pass Current | 3000mA (Typ) | 3000mA (Typ) | 3000mA (Typ) |
Lightning Protection | 8/20S 10kA Pulse (IEC801-5) | 8/20S 10kA Pulse (IEC801-5) | 8/20S 10kA Pulse (IEC801-5) |
MTBF Hours | ≥ 500,000 | ≥ 500,000 | ≥ 500,000 |
Mechanical Specification
Connectors | Type-N (N) / DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) |
Housing Finish | Aluminum Body |
Mounting Method | Mounting Holes |
Temperature Range | -30°C to 60°C |
Humidity | 5% – 95% |
Environment | IP67 |

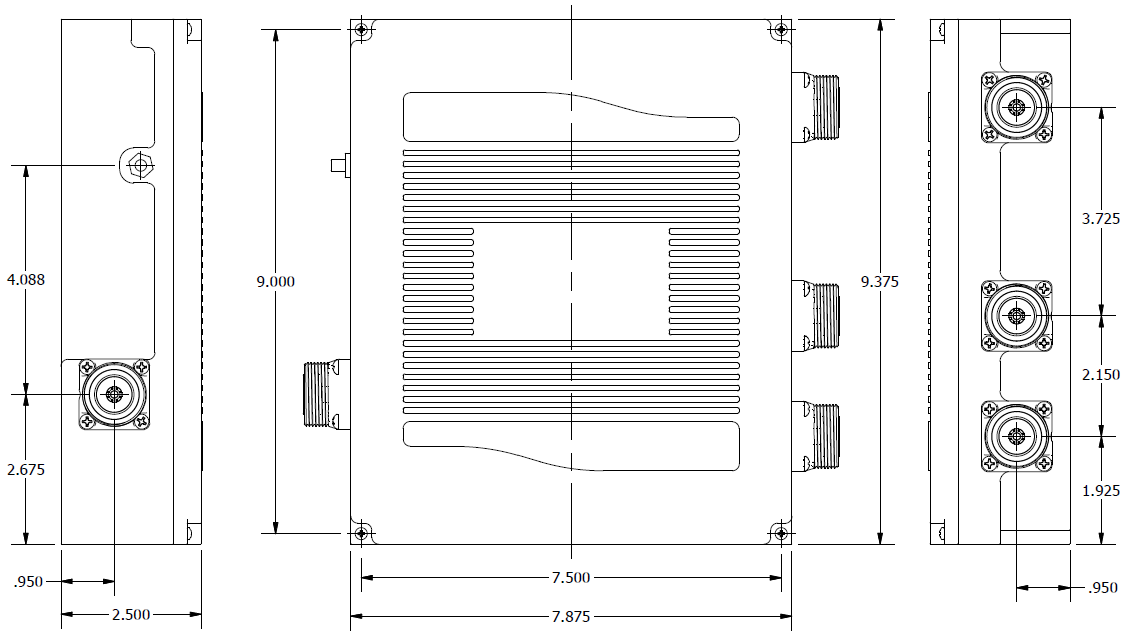

Dimensions for 931-820-2140-D

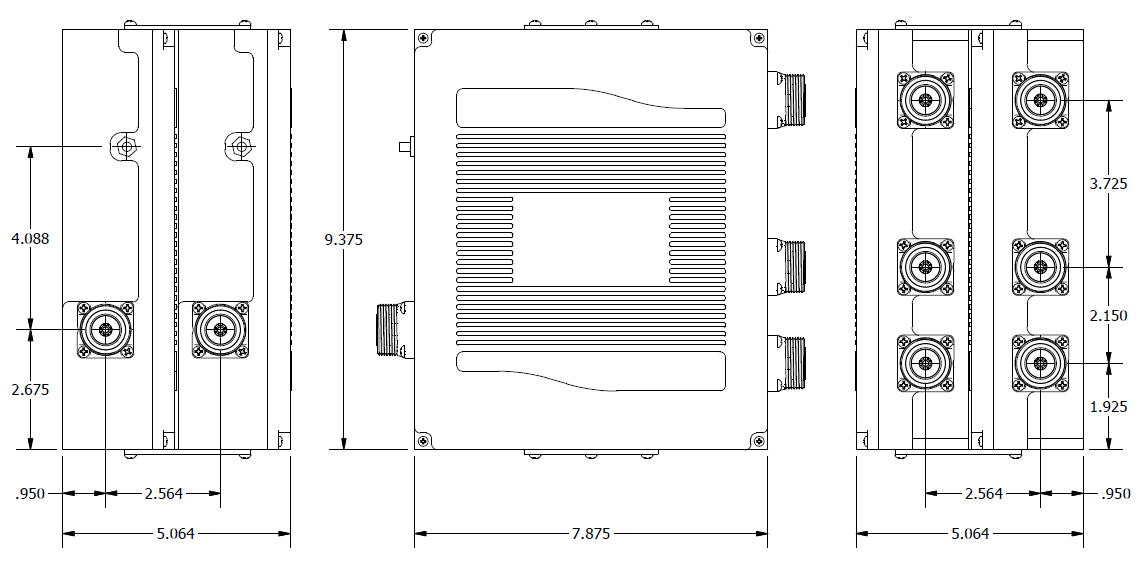

Dimensions for 932-820-2140-D
© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.
For Complete Specifications, please download the PDF
