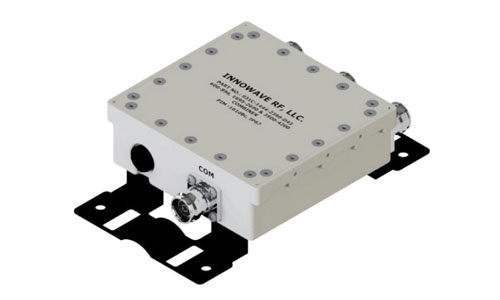

600,700,850 / AWS-1,AWS-3,PCS,WCS,BRS / CBRS Triplexer / Combiner
FEATURES
- Splits or combines the 600MHz-B71, 700MHz-LTE, 850 Bands (600MHz-896MHz), AWS-1, AWS-3, PCS, WCS, BRS Bands (1695MHz-2690MHz) and Extended CBRS Band (3500MHz-4200MHz)
- Excellent Isolation between the bands
- Very low Insertion Loss with superior out of band rejections
- Available in DIN, Mini-DIN, 4.3-10 or Nex10 Connectors
- Low-PIM with High Power Handling
- Ease of Mounting with mounting holes and brackets
- RoHS Complaint
- Weatherproof for Outdoor use
Electrical Specification
| Frequency Bands | Port 1 (600,700,850) 600-896 MHz | Port 2 (1900,2100,2300,2500) 1695-2690 MHz | Port 3 (CBRS) 3500-4200 MHz |
| Passband Insertion Loss | 0.30 dB | ||
| Isolation | ≥ 40dB @ 1695-2690 MHz ≥ 40dB @ 3500-4200 MHz | ≥ 40dB @ 600-896 MHz ≥ 40dB @ 3500-4200 MHz | ≥ 40dB @ 600-896 MHz ≥ 40dB @ 1695-2690 MHz |
| Return Loss | 20 dB | ||
| Impedance | 50 Ohms | ||
| Input Power | 250 Watts (Avg); 500 Watts (Peak) | ||
| Intermodulation (PIM - 3rd) | -161dBc (2 Tones +43 dBm) | ||
| DC Pass Current | 3000mA (Typ) | ||
| Lightning Protection | 8/20S 10kA Pulse (IEC 801-5) | ||
| MTBF Hours | ≥ 500,000 | ||

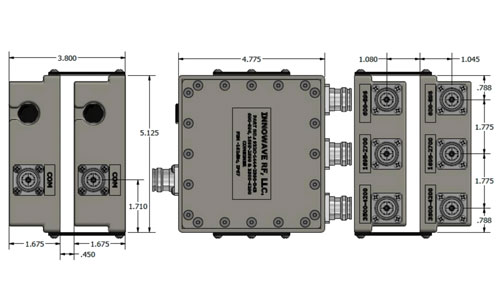

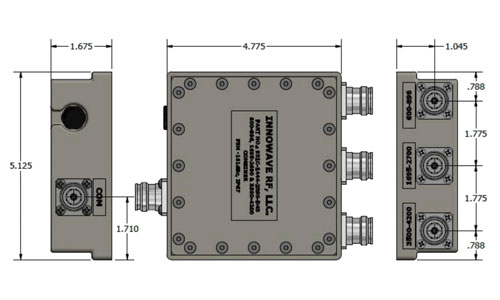

Mechanical Specification
| Connectors: | DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Nex10(X10) |
| Housing Finish: | Aluminum Body |
| Mounting Method: | Mounting Panel |
| Weight: | 2.0 lbs (Single) / 4.0 lbs (Dual) |
| Temperature Range: | -30°C to 60°C |
| Humidity: | 5% - 95% |
| Environment: | IP67 |
*** ORDERING INFO:
Single Model: Part#: 931C-1444-3390-*
Dual Model: Part#: 932C-1444-3390-*
* – Connector Option
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
