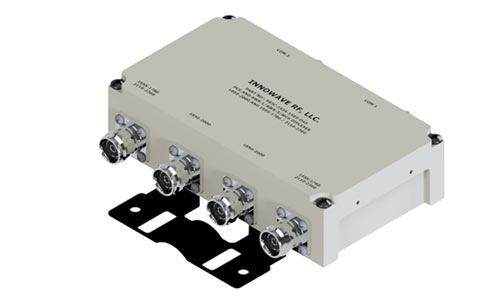

PART #: 903C-829-2205

600/700LTE/GSM/CDMA and PCS/AWS-1/AWS-3/WCS/BRS Combiner

FEATURES

  • Splits or combines the 600MHz Band71/700MHz LTE/GSM/CDMA Bands and PCS/AWS-1/AWS-3/BRS-2600MHz Bands, including Wi-Fi/WiMAX
  • Compact Design with Single/Stacked/Twin/Quad combiner model available for tight space applications
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Low-PIM with High Power Handling
  • Available in 7/16 DIN, Mini-DIN and 4.3-10 Connectors
  • RoHS Complaint, Weatherproof / Outdoor unit

BLOCK DIAGRAM FOR 903C-829-2205

Electrical Specification

Frequency Bands600-B71/700-LTE/GSM/CDMA
600 MHz - 960 MHz		PCS/AWS-1/AWS-3//WCS/BRS-2600
1695 MHz - 2690 MHz
Passband Insertion Loss0.20dB
Isolation≥40dB
@ 1695MHz-2690MHz		≥40dB
@ 600MHz-960MHz
Return Loss21dB
Impedance50 Ohms
Input Power100 Watts (Avg); 250 Watts (Peak)
DC Pass Current4000 mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)

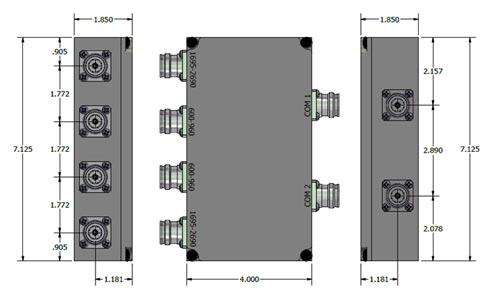

Mechanical Specification

Connectors: 7/16 DIN (D) / Mini-DIN (MD)
4.3-10 (D43) / NEX-10 (X10)
Mounting Method:Mounting Panel
Temperature Range:-20°C to 70°C
Weight: 2.00 lbs
Relative Humidity:5% - 95%
Environment: IP67

*** ORDERING INFO:

Stacked Model: Part#: 903C-829-2205-*

* – Connector Option

Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
