231-600-6000

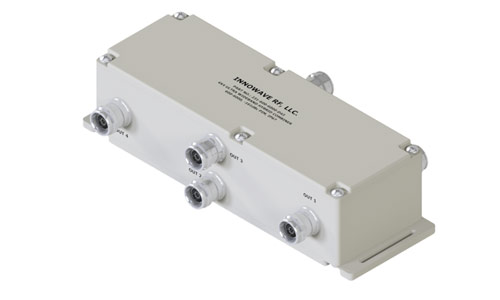

4X4 6dB Ultra Wideband Hybrid Combiner

-161dBc PIM, 600-6000 MHz, IP67

231-600-6000 is 4×4, 6dB Ultra Wideband Hybrid Combiner that can be used to combine or split any 4 signals in the 600MHz – 6000MHz range, including the CBRS, C-Band and LTE-LAA bands. The combined signals will appear at all the output ports. These are symmetric devices so Inputs and Outputs can be used interchangeably. It can also be used to split one input signal into 4 output ports. The unused port must be always terminated with a 50Ω Load.

FEATURES

  • Splits or Combines 4 signals between 600 – 6000MHz
  • Designed to include CBRS, C-Band and LTE-LAA band
  • Best-in-class Isolation between the 4 ports
  • Very low Insertion Loss
  • Low-PIM & High Power Handling
  • RoHS Complaint
  • Weatherproof for Outdoor use
  • In Stock & Available Immediately
  • Ease of Mounting with mounting holes / brackets
  • Available in different Connector configurations

231-600-6000-1-1
231-600-6000-2-1

Electrical Specification

Frequency Range600MHz – 6000MHz
Coupling Loss6.20 dB ±0.80dB @ 600-2700MHz
6.20 dB ±1.00dB @ 2700-4200MHz
6.35 dB ±1.10dB @ 4200-6000MHz
Isolation25.00 dB @ 600-3800 MHz
24.00 dB @ 3800-6000 MHz
VSWR1.25
Impedance50 Ohms
Input Power100 Watts (Avg) / Port
Intermodulation (PIM - 3rd)-161 dBc
(2Tones +43dBm)
DC PathIN PORT1 → OUT PORT4
IN PORT2 → OUT PORT2
IN PORT3 → OUT PORT3
IN PORT4 → OUT PORT1
(Max 6.5A AISG2 Conform)

Mechanical Specification

Connectors4.3-10 (D43) / Nex10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Kit
Temperature Range-30°C to 70°C
Weight4.00 lbs
Humidity5% - 95%
EnvironmentIP67

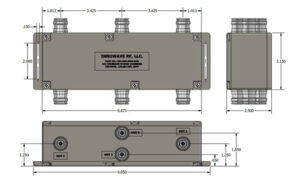

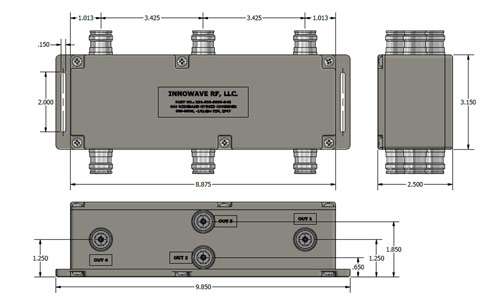

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
