425-600-6000

25 dB Wideband Directional Couplers

-163 dBc PIM, 600-6000 MHz, IP67

4XX-600-6000 Series of Wideband Directional Couplers are Low-PIM devices that operate from 600MHz – 6000MHz. It covers all cellular bands, including CBRS, C-Band and LTE-LAA. It has excellent directivity and coupling flatness across the entire band. It also exhibits a very low insertion loss along with outstanding VSWR at all three ports. These units are weatherproof and suitable for extreme conditions. Available in different connector options. Other Coupling Values are available on request.

FEATURES

  • Operates from 600 MHz to 6000 MHz
  • Covers 600MHz (Band 71), CBRS, C-Band & LTE-LAA
  • Low Insertion Loss and Low VSWR
  • Excellent PIM rating, -163dBc
  • RoHS Complaint
  • Weatherproof / Outdoor unit
  • In Stock to low lead time delivery
  • Superior Construction and High Power Handling
  • Available in 4.3-10 or Nex10 Connectors

Electrical Specification

Coupling Value3dB5dB6dB7dB8dB10dB12dB13dB15dB20dB25dB30dB
Frequency Bands600 MHz – 6000 MHz
Insertion Loss (dB)≤2.45≤2.20≤1.50≤1.20≤1.00≤0.75≤0.50≤0.50≤0.50≤0.30≤0.25≤0.25
Frequency Sensitivity (dB)
600 – 698 MHz±1.30±1.40±1.40±1.60±1.60±1.60±1.65±1.65±1.70±1.75±1.80±1.80
698 – 2700 MHz±1.30±1.40±1.40±1.60±1.60±1.60±1.70±1.70±1.75±1.75±1.80±1.80
2700 – 6000 MHz±1.40±1.50±1.50±1.75±1.75±1.75±1.70±1.70±1.75±1.80±1.90±1.90
Directivity (dB)
600 – 698 MHz≥ 24≥ 25≥ 25≥ 28≥ 28≥ 29≥ 32≥ 32≥ 34≥ 37≥ 47≥ 47
698 – 2700 MHz≥ 24≥ 25≥ 25≥ 27≥ 27≥ 27≥ 30≥ 30≥ 32≥ 35≥ 45≥ 45
2700 – 6000 MHz≥ 23≥ 23≥ 23≥ 25≥ 25≥ 25≥ 28≥ 28≥ 30≥ 30≥ 42≥ 42
Return Loss-19dB @ 600 – 4200 MHz / -17 dB @ 4200 – 6000 MHz
Impedance50 Ω
Intermodulation (PIM-3rd)-163 dBc (2 Tones +43 dBm)
Input Power300 Watts (Avg); 500 Watts (Peak)
Other Coupling Values are available on Request

Mechanical Specification

Connectors4.3-10 (D43) / Nex10 (X10)
Housing FinishAluminum Body
Mounting MethodMounting Panel
Temperature Range-30°C to 75°C
Weight0.75 lb
Relative Humidity5% - 95%
EnvironmentIP67

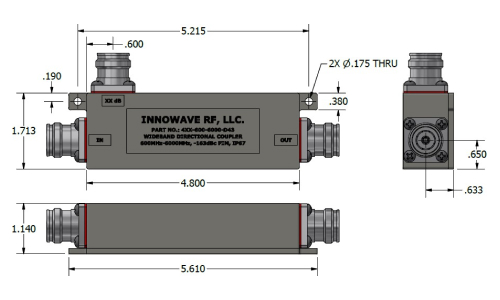

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only
