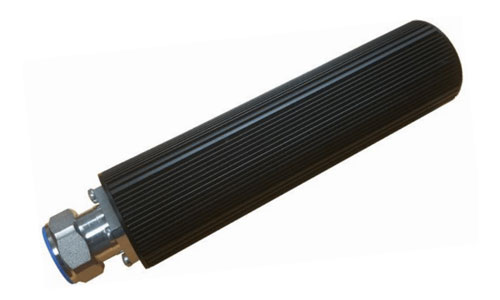

40W Low-PIM Ultra Wideband Terminations / Loads

PART #:

303L-40

40W Low-PIM Ultra Wideband Terminations / Loads

-161dBc PIM, 600-6000 MHz, IP67

DESCRIPTION

303L-40 Series of Low-PIM Wideband RF Terminations operates from 600MHz to 6000MHz and is rated at 40 Watts of power. These terminations are mechanically well constructed to allow maximum heat dissipation to sustain long life by preventing temperature hot spots. These are precision machined, robust and can be used over a wide range of temperature and environmental conditions. They are perfect for both Indoor and Outdoor DAS applications.

FEATURES

Covers CBRS and LTE-LAA bands
Low-PIM performance, -161dBc (min)
Superior Mechanical Construction
40 Watts Power Handling
Low VSWR from 600MHz to 6000MHz
RoHS Complaint
In stock and available immediately
Available in different connector configurations

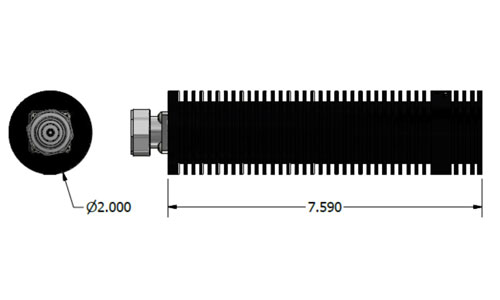

BLOCK DIAGRAM FOR 303L-40 SERIES

*** ORDERING INFO:

Part #: 303L-40-*

(* - Connector Option)

ELECTRICAL & MECHANICAL SPECIFICATIONS:

Frequency Range:	600MHz – 6000MHz
VSWR	≤ 1.25 (Typ) @ 600-3800 ≤ 1.30 (Typ) @ 3800-6000
Input power:	40 Watts (Avg); 500W (Peak)
Impedance:	50 Ω
Intermodulation (PIM - 3rd):	-161 dBc (Min) (2Tones +40dBm)
Connectors:	7/16 DIN (D) / Mini-DIN (MD) 4.3-10 (D43) / Nex10 (x10)
Housing Finish:	Aluminum Body
Mounting Method:	Mounting Panel
Temperature Range:	-35°C to 75°C
Weight:	2.00 lbs
Relative Humidity:	5% - 95%
Environment:	IP67

Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
