PART #:

303L-10

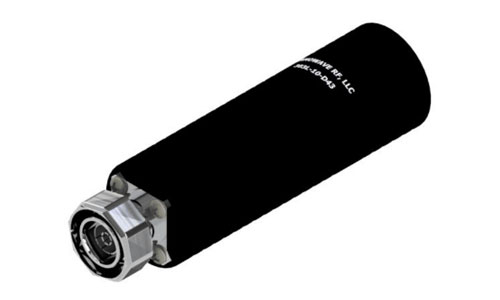

10W Low-PIM Ultra Wideband Terminations / Loads

-161dBc PIM, 600-6000 MHz, IP67

DESCRIPTION

303L-10 Series of Low-PIM Ultra Wideband RF Terminations operates from 600MHz to 6000MHz and is rated at 10 Watts of power. These terminations are mechanically well constructed to allow maximum heat dissipation to sustain long life by preventing temperature hot spots. These are precision machined, robust and can be used over a wide range of temperature and environmental conditions. They are perfect for both Indoor and Outdoor DAS applications.

FEATURES

  • Covers both CBRS and LTE-LAA bands
  • Low-PIM performance, -161dBc (min)
  • Superior Mechanical Construction
  • 10 Watts Power Handling
  • Low VSWR from 600MHz to 6000MHz
  • RoHS Complaint
  • In stock and available immediately
  • Available in different connector configurations

BLOCK DIAGRAM FOR 303L-10 SERIES

*** ORDERING INFO:

Part #: 303L-10-*

(* - Connector Option)

ELECTRICAL & MECHANICAL SPECIFICATIONS:

Frequency Range:600MHz – 6000MHz
VSWR≤ 1.25 (Typ) @ 600-3800
≤ 1.30 (Typ) @ 3800-6000
Input power: 10 Watts (Avg); 100W (Peak)
Impedance:50 Ω
Intermodulation (PIM - 3rd):-161 dBc (Min)
(2Tones +40dBm)
Connectors:7/16 DIN (D) / Mini-DIN (MD)
4.3-10 (D43) / Nex10 (x10)
Housing Finish: Aluminum Body
Mounting Method:Mounting Panel
Temperature Range:-35°C to 75°C
Weight: 0.60 lbs
Relative Humidity:5% - 95%
Environment: IP67

Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.

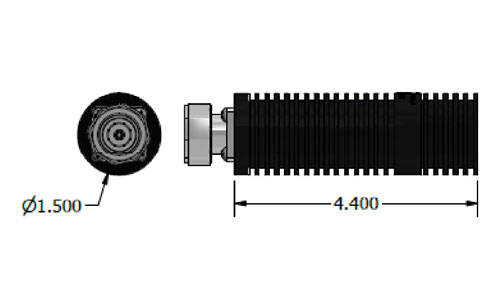

© Innowave RF, LLC. All Rights Reserved. Specs can change without notice. Drawings are for reference purpose only.
