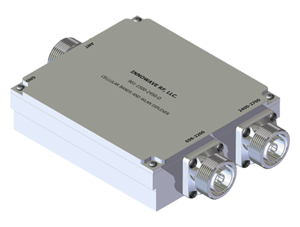

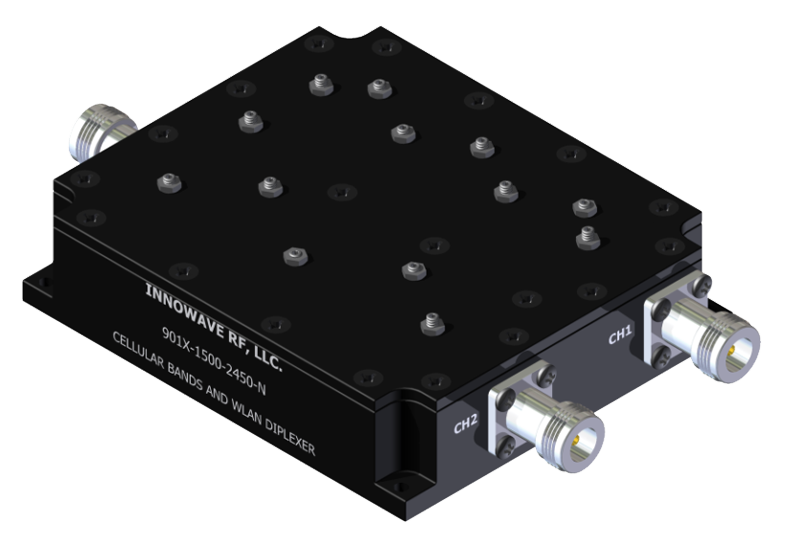

Cellular Bands and Wi-Fi/WLAN Bands Diplexer / Combiner

PART #:

901-1500-2450
FEATURES

  • Splits or combines all the Cellular Bands (698MHz-2200MHz) and WLAN/Wi-Fi/WiMAX/ISM Bands (2400MHz-2700MHz)
  • Best in Class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Low PIM and High Power Handling
  • RoHS Complaint
  • DC By-pass available on outdoor units
  • Ease of Mounting with mounting holes
  • Weatherproof / Outdoor options available
  • In Stock and Available Immediately

Electrical Specification

Frequency BandsCellular Bands 698 MHz -2200 MHz WLAN/Wi-Fi/ISM Bands 2400 MHz - 2700 MHz
Passband Insertion Loss0.20 dB0.20 dB
Isolation≥70 dB @ 2400MHz-2700MHz≥70 dB @ 698MHz-2200MHz
Return Loss21 dB21 dB
Impedance50 Ohms50 Ohms
DC Pass Current4000mA (Typ) (Outdoor units only)4000mA (Typ) (Outdoor units only)
Lightning Protection8/20S 10kA Pulse (IEC 801-5) (Outdoor units only)8/20S 10kA Pulse (IEC 801-5) (Outdoor units only)
Input Power400 Watts (Avg); 2500 Watts (Peak)400 Watts (Avg); 2500 Watts (Peak)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)-161 dBc (2 Tones +43 dBm)

Mechanical Specification

Connectors: 7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing Finish: Aluminum Body
Mounting Method: Mounting Panel
Temperature Range: -35°C to 75°C
Relative Humidity:5% - 95% (Outdoor units only)
Environment: IP67 (Outdoor units only)
