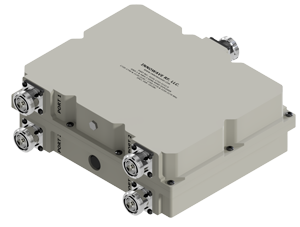

AWS-1 & AWS-3 Same Band (15MHz Guard Band) Duplexer

PART #:

922A-1732-2132-D
FEATURES

  • Splits or combines any two 20MHz blocks in the AWS-1 & AWS-3 Bands separated by 15MHz Guard Band
  • Uplink Freq (1720-1740 & 2120-2140) / Downlink Freq (1755-1770 & 2155-2170)
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Available in Type-N, 7/16 DIN, Mini-DIN and 4.3-10 Connectors
  • Low-PIM with High Power Handling
  • -161dBc PIM and DC By-Pass
  • Weatherproof / Outdoor unit
  • RoHS Complaint

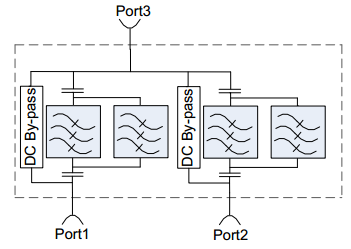

Electrical Specification

Frequency BandsDownlink Freq (Port 1 & 3) 1755-1770 MHz & 2155-2170 MHz Uplink Freq (Port 2 & 4) 1720-1740 MHz & 2120-2140 MHz
Passband Insertion Loss0.30 dB0.30 dB
Isolation≥ 30dB @ 1720-1740 MHz & 2120-2140 MHz ≥ 30dB @ 1755-1770 MHz & 2155-2170 MHz
Return Loss20 dB20 dB
Impedance50 Ohms50 Ohms
DC Pass Current4000 mA (Typ)4000 mA (Typ)
Lightning Protection8/20S 10kA Pulse (IEC 801-5)8/20S 10kA Pulse (IEC 801-5)
Input Power250 Watts (Avg); 500 Watts (Peak)250 Watts (Avg); 500 Watts (Peak)
Intermodulation (PIM - 3rd)-161 dBc (2 Tones +43 dBm)-161 dBc (2 Tones +43 dBm)

Mechanical Specification

Connectors: 7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing Finish: Aluminum Body
Mounting Method:Mounting Bracket
Temperature Range: -35°C to 75°C
Relative Humidity:5% - 95%
Environment: IP67 (Outdoor)

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
