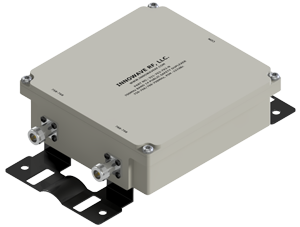

700MHz Band 14 Public Safety Band Duplexer / Same Band Combiner

PART #:

921-763-793
FEATURES

  • Splits or combines the Uplink (RX) (788MHz-798MHz) and Downlink (TX) (758MHz-768MHz)
  • frequencies within the 700 MHz Band-14 Public Safety Band
  • Best-in-class Isolation between the 2 signals
  • Very low Insertion Loss with superior out of band rejections
  • Available in 4.3-10 and Type-N Connectors Standard
  • Ease of Mounting with mounting holes
  • RoHS Compliant
  • In Stock and Available Immediately

Electrical Specification

Frequency BandsDownlink Freq 758MHz - 768MHz Uplink Freq 788MHz – 798MHz
Passband Insertion Loss0.50 dB
Isolation65dB
Return Loss20 dB
Impedance50 Ohms
DC Pass Current8/20S 10kA Pulse (IEC 801-5) (Available on Request)
Lightning Protection100 Watts (Avg)
Input Power-157 dBc (2 Tones +43 dBm)
Intermodulation (PIM - 3rd)≥ 500,000

Mechanical Specification

Connectors:7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing Finish: Aluminum Body
Mounting Method:Mounting Bracket
Temperature Range:-35°C to 75°C
Weight:3.00 lbs
Relative Humidity: 5% - 95%
Environment: IP65

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
