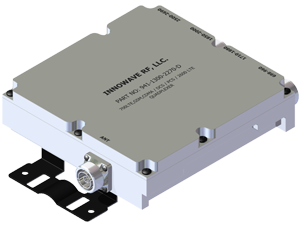

700 LTE, GSM, CDMA / 1800MHz DCS / 1900MHz PCS / 2600 LTE Quadplexer / Multi-Band Combiner

PART #:

941-1300-2270
FEATURES

  • Splits or combines 700LTE, GSM, CDMA Bands (698MHz-960MHz), DCS Band (1710MHz-1880MHz), PCS Band (1850MHz-2000MHz) and 2600LTE Band (2500MHz-2690MHz)
  • Excellent Isolation between the bands
  • Very low Insertion Loss with superior out of band rejections
  • Available in DIN, Mini-DIN, 4.3-10 or Type-N Connectors
  • Ease of Mounting with mounting holes and brackets
  • Low-PIM with High Power Handling
  • RoHS Complaint
  • Weatherproof for Outdoor installation
  • In Stock and Available Immediately

Electrical Specification

Frequency Bands700LTE, GSM, CDMA1800MHz DCS1900MHz PCS2600LTE
698MHz - 960MHz1710MHz - 1880MHz1850MHz - 2000MHz2500MHz - 2690MHz
Passband Insertion Loss0.25 dB0.25 dB0.25 dB0.25 dB
Isolation≥ 65 dB≥ 65 dB≥ 65 dB≥ 65 dB
Return Loss21 dB21 dB21 dB21 dB
Impedance50 Ohms50 Ohms50 Ohms50 Ohms
Input Power250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)250 Watts (Avg); 2500 Watts (Peak)
DC Pass Current4000 mA (Typ)4000 mA (Typ)4000 mA (Typ)4000 mA (Typ)
Intermodulation (PIM-3rd)-161dBc (2 Tones +43 dBm)-161dBc (2 Tones +43 dBm)-161dBc (2 Tones +43 dBm)-161dBc (2 Tones +43 dBm)
Lightning Protection8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)8/20S 10KA Pulse (IEC801-5)
MTBF Hours≥ 500,000≥ 500,000≥ 500,000≥ 500,000

Mechanical Specification

Connectors:7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Type-N (N)
Housing Finish: Aluminum Body
Mounting Method:Mounting Panel
Temperature Range:-35°C to 75°C
Relative Humidity:5% - 95%
Environment:IP67

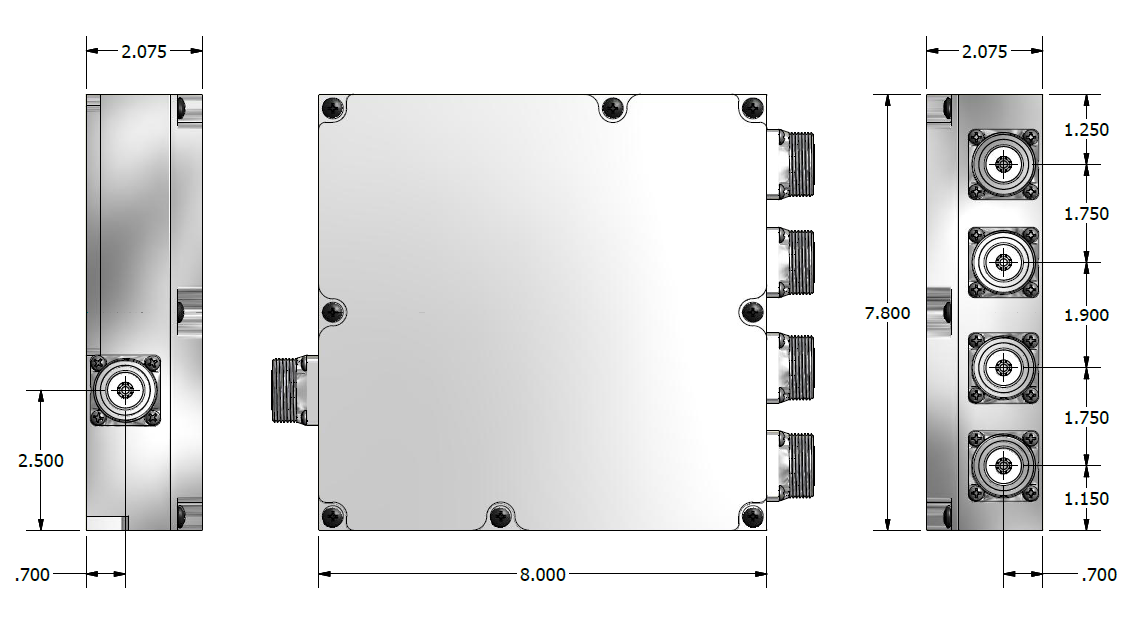

Dimensions for 941-1300-2270-D

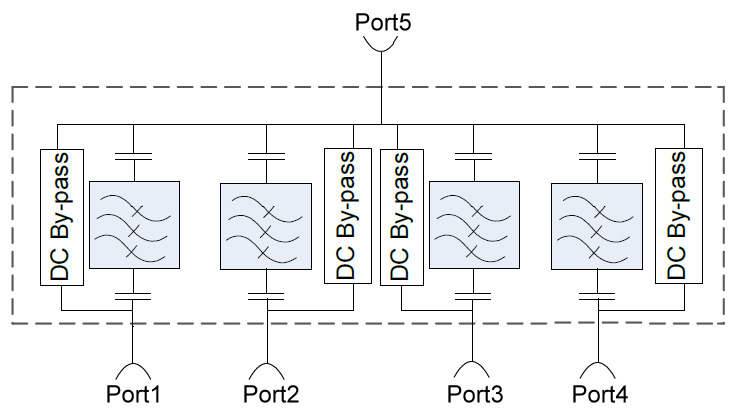

Block Diagram Representation for 941-1300-2270-D

© Innowave RF, LLC All Rights Reserved. All Specifications for Illustration purpose only.

For Complete Specifications, please download the PDF
