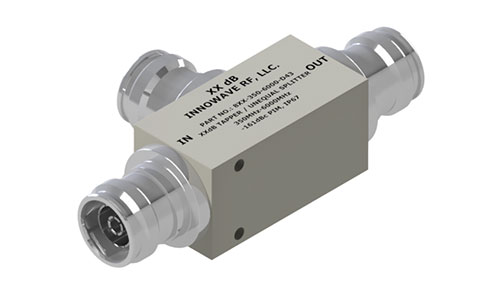

8XX-350-6000Tappers/Unequal Splitters
-161dBc PIM, 350-6000MHZ, IP67
DESCRIPTION
8XX-350-6000 Series of Tappers / Unequal Splitters are Low-PIM devices that operate from 350 MHz – 6000 MHz. Splitting ratios vary in fixed increments from 2:1 to 1000:1 with minimal Insertion loss and excellent coupling flatness across the entire band. It also exhibits outstanding VSWR at all three ports across all cellular bands. These units are weatherproof and suitable for extreme conditions. Available in different connector options.
FEATURES
- Ultra Wide bandwidth, 350 MHz to 6000 MHz
- Cover all Cellular Bands including CBRS and LTE-LAA
- Low Insertion Loss and Low VSWR
- Available in different Coupling Ratios
- Excellent PIM rating, -161dBc
- RoHS Complaint
- Weatherproof / Outdoor unit
- In Stock to low lead time delivery
- Superior Construction and High Power Handling
- Available in DIN, Mini-DIN, 4.3-10, Nex10 and Type-N Connectors

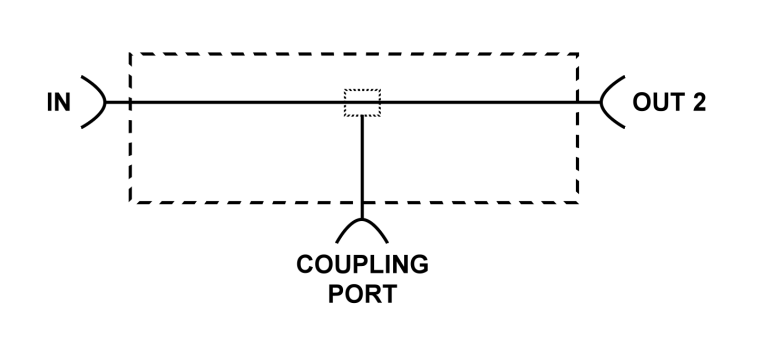

BLOCK DIAGRAM FOR TAPPERS
Electrical Specification
| Coupling Ratio | 02:01 | 03:01 | 04:01 | 06:01 | 10:01 | 20:01 | 06:01:00 | 04:01:00 | 16:01:00 |
| Inequality b/n Outputs | 3dB | 4.8dB | 6dB | 8dB | 10dB | 13dB | 15dB | 20dB | 30dB |
| Output Splits (dB) | 1.8/4.8 | 1.3/6.1 | 1.0/7.0 | 0.7/8.6 | 0.4/10.4 | 0.2/13.2 | 0.1/15.1 | 0.1/20.1 | 0.1/30.1 |
| Frequency Bands | 350 - 960 MHz; 1695 - 2700 MHz; 3400 - 3800 MHz; 5100 - 6000 MHz | ||||||||
| Flatness (ref to Input)(dB) | ±1.00@350-960 ±0.75@1695-2700 ±0.75@3400-3800 ±0.50@5100-6000 | ±0.75@350-960 ±0.50@1695-2700 ±0.50@3400-3800 ±0.35@5100-6000 | ±1.00@350-960 ±0.75@1695-2700 ±0.75@3400-3800 ±0.60@5100-6000 | ±1.20@350-960 ±1.00@1695-2700 ±1.00@3400-3800 ±0.75@5100-6000 |
|||||
| Return Loss | 1.35@350-960 1.30@1695-2700 1.30@3400-3800 1.25@5100-6000 | 1.30@350-960 1.25@1695-2700 1.22@3400-3800 1.22@5100-6000 | 1.30@350-960 1.25@1695-2700 1.22@3400-3800 1.22@5100-6000 | 1.25@350-960 1.22@1695-2700 1.20@3400-3800 1.22@5100-6000 |
|||||
| Impedance | 50 Ω | ||||||||
| Intermodulation (PIM - 3rd) | -161 dBc (2 Tones +43 dBm) | ||||||||
| Input Power | 500 Watts (Avg) | ||||||||

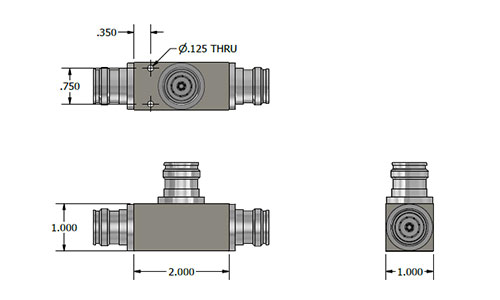

Mechanical Specification
| Connectors: | 7/16 DIN (D) / Mini-DIN (MD) / 4.3-10 (D43) / Nex10 (X10) / Type-N (N) |
| Housing Finish: | Aluminum Body |
| Mounting Method: | Mounting Bracket |
| Temperature Range: | -35°C to 75°C |
| Weight | 0.80 lb |
| Relative Humidity: | 5% - 95% |
| Environment: | IP67 |
PART ORDERING INFO:
8XX-350-6000-*
XX - Coupling Value
(Ex: 5dB -- 805; 30dB -- 830)
* - Connector Option
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
