PART #:

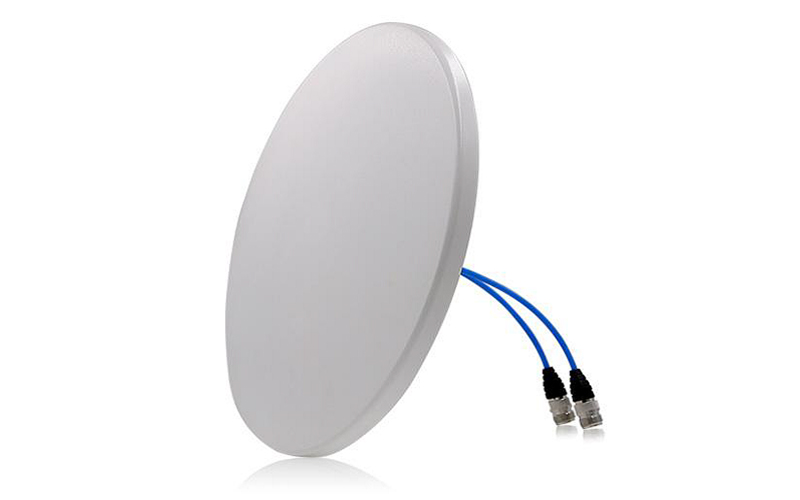

752-600-6000Super Thin Ultra Wideband Ceiling-Mount MIMO Antenna
-155dBc PIM, 2 / 4 dBi Gain, 617 – 960 MHz / 1695 - 6000 MHz, IP65
DESCRIPTION
752-600-6000 is PIM-Rated, Ultra Wideband Ceiling-Mount MIMO Antenna that allows facilities to support all cellular and non-cellular frequency bands from 600 MHz to 6000 MHz. This Antenna provides a unique feature of covering the entire 3G/4G/LTE cellular, CBRS, LTE-LAA and Wi-Fi/WiMAX frequencies. It supports all cellular standards with high efficiency in all the bands, thus enabling a uniform coverage for all the applications with one antenna. This Super Thin Antenna is designed to blend in with the environment and is perfect for In-Building Applications.
FEATURES
- Superior Performance across all bands from 600MHz to 6000MHz
- MIMO 2-Port Antenna
- Covers Cellular, CBRS, LTE-LAA & Wi-Fi/WiMAX bands
- Light Weight, Super Thin Antenna
- High Gain, Low VSWR
- Low PIM performance
- Corrosion resistant and Anti-aging material
- RoHS Complaint
- In Stock to low lead time delivery
Electrical Specification
| Frequency Bands | 617-960 | 1427-1518 | 1695-2180 | 2300-2700 | 3300-3800 | 4900-6000 |
| Gain | 2 dBi | 2 dBi | 4 dBi | 4 dBi | 4 dBi | 4 dBi |
| VSWR | ≤ 1.8 | ≤ 1.5 | ≤ 1.5 | ≤ 1.5 | ≤ 1.8 | ≤ 1.8 |
| Isolation | 16 | 16 | 20 | 22 | 26 | 28 |
| Polarization | Horizontal | |||||
| Horizontal Beamwidth | 360° | |||||
| Input Impedance | 50 Ohms | |||||
| Max Power | 50 Watts | |||||
| Lightning Protection | DC Ground | |||||
| Intermodulation (PIM - 3rd) | -155 dBc (Typ) (2 Tones +43 dBm) | |||||

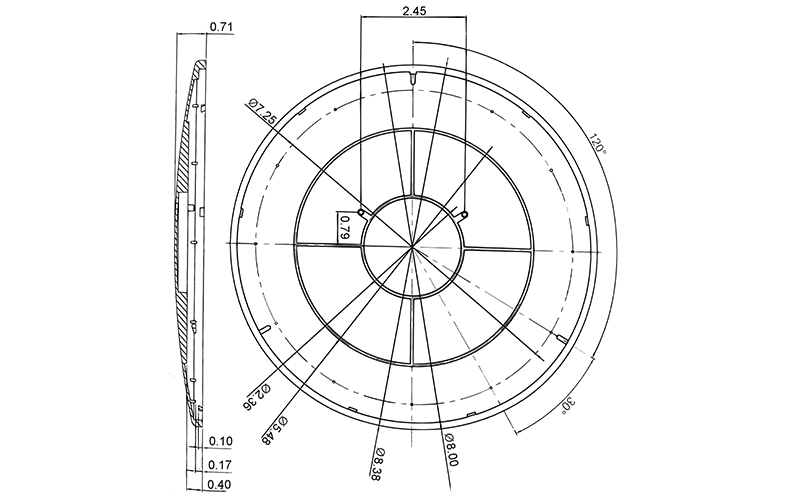

Mechanical Specification
| Connectors | 2 * 4.3-10(F) (Standard) |
| Environmental Class | IP65 |
| Mounting | Panel Mount |
| Dimension | ø8.375” x 0.725” |
| Weight | 1.00 lb |
| Reflector Material | Aluminum |
| Radome Material | ABS |
| Radome Color | White (Standard) |
| Operating Temperature | -40°C to +65°C |

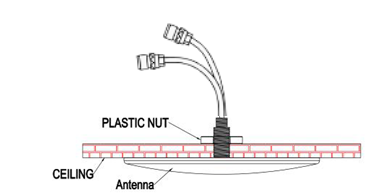

INSTALLATION RENDERING
ORDERING INFO:
| 4.3-10 Conn: | 752-600-6000-D43 |
| Type-N Conn: | 752-600-6000-N |
Please contact our sales department at 737-200-7090 or sales@InnowaveRF.com for any custom requirements.
